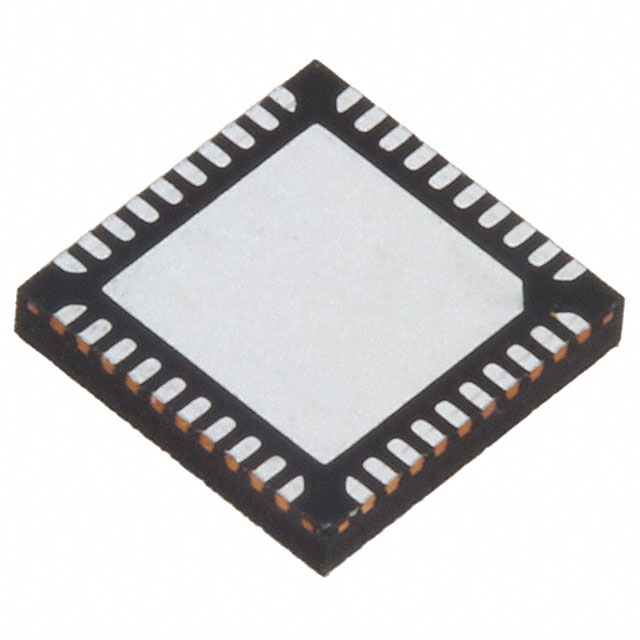

M09000G-14
IC LED DRVR RGLTR PWM 1.2A 40QFNManufacturer: MACOM Technology Solutions
Categories: LED Drivers
Quality Control: Learn More
MACOM Technology Solutions M09000G-14 is a versatile DC-DC regulator IC featuring three outputs. This component supports both step-down (buck) and step-up (boost) topologies, enabling flexible power management solutions. It incorporates Pulse Width Modulation (PWM) dimming with a frequency of 12.5kHz and an output current capability of 1.2A per channel. The integrated switch design enhances efficiency. The M09000G-14 operates within a voltage supply range of 2.7V to 5.25V, with an output voltage of 4.6V. Supplied in a 40-QFN (5x5) package, it is suitable for surface mount applications and operates across an extended temperature range of -40°C to 85°C. This component finds application in various industries requiring precise LED control and power regulation.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 40-VFQFN Exposed Pad |
| Voltage - Output | 4.6V |
| Mounting Type | Surface Mount |
| Number of Outputs | 3 |
| Frequency | 12.5kHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | - |
| Current - Output / Channel | 1.2A |
| Internal Switch(s) | Yes |
| Topology | Step-Down (Buck), Step-Up (Boost) |
| Supplier Device Package | 40-QFN (5x5) |
| Dimming | PWM |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.25V |
Request a Quote
Clients Also Buy

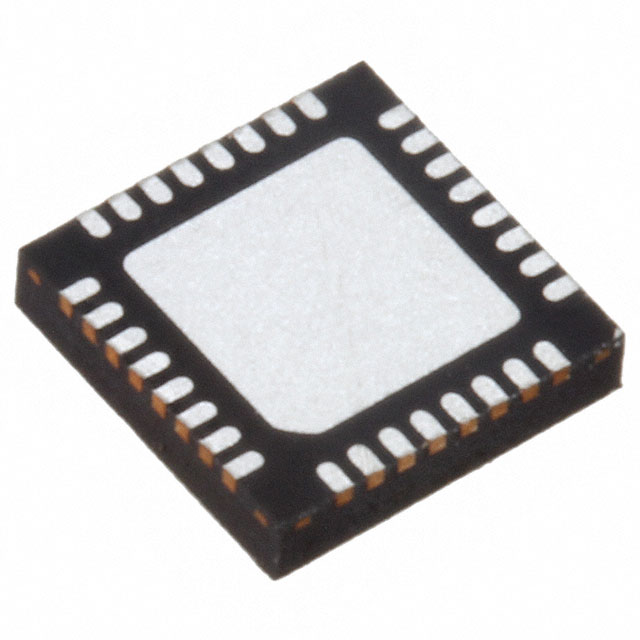

M08898G-13
IC LED DRIVER 2A

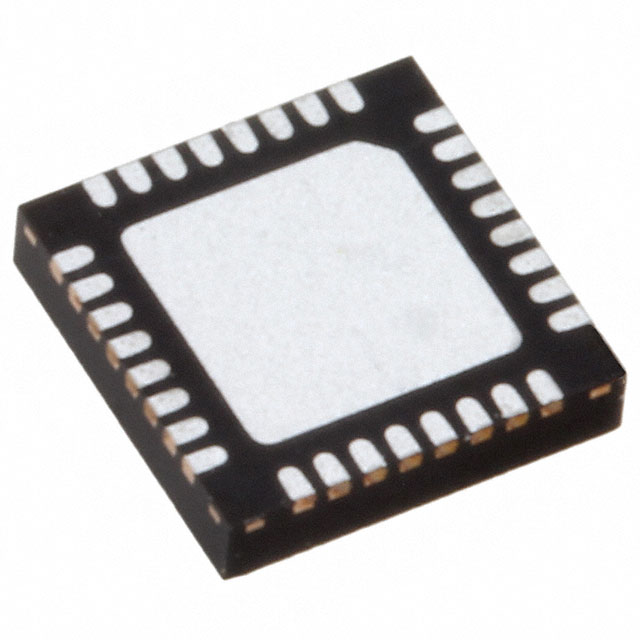

M08890G-13
IC LED DRIVER 2A

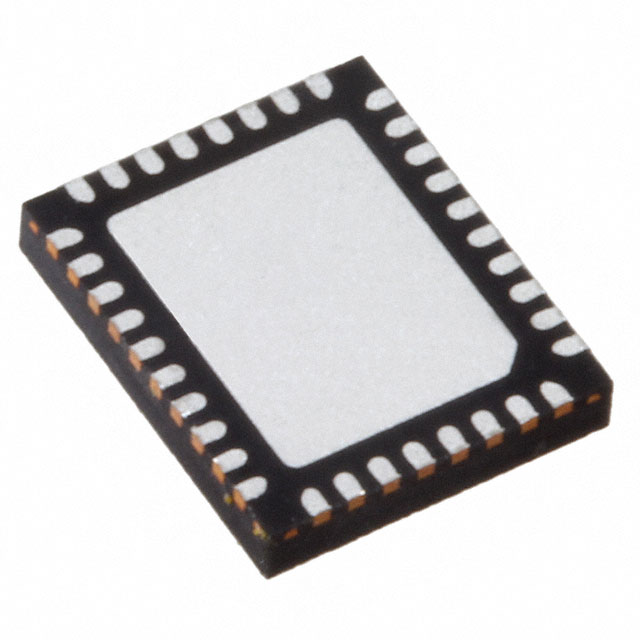

M08889G-13
