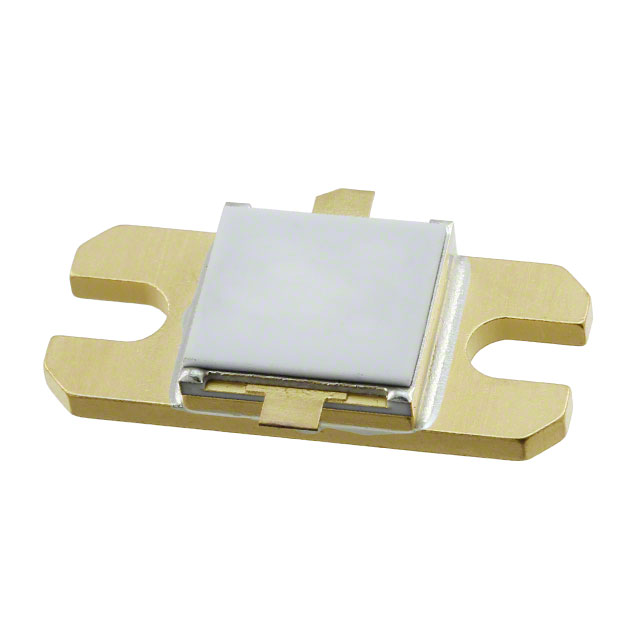

PH3135-5S
RF TRANS NPN 60VManufacturer: MACOM Technology Solutions
Categories: Bipolar RF Transistors
Quality Control: Learn More
MACOM Technology Solutions PH3135-5S is an NPN RF transistor designed for high-performance applications. This component operates at a collector-emitter breakdown voltage of 60V and can handle a maximum collector current of 750mA. Delivering a power output of 5W with a typical gain of 8.5dB, it is suitable for demanding RF power amplification stages. The device is specified for operation at an extended junction temperature of 200°C, ensuring reliability in challenging thermal environments. It is supplied in tray packaging. This transistor finds application in various RF power systems, including but not limited to, base station infrastructure and defense electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | - |
| Mounting Type | - |
| Transistor Type | NPN |
| Operating Temperature | 200°C (TJ) |
| Gain | 8.5dB |
| Power - Max | 5W |
| Current - Collector (Ic) (Max) | 750mA |
| Voltage - Collector Emitter Breakdown (Max) | 60V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - |
| Frequency - Transition | - |
| Noise Figure (dB Typ @ f) | - |
| Supplier Device Package | - |
