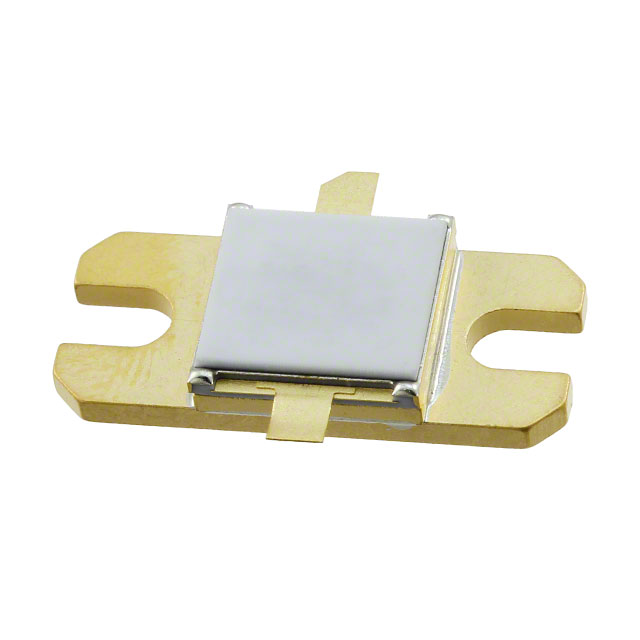

PH3134-30S
RF TRANS NPN 65VManufacturer: MACOM Technology Solutions
Categories: Bipolar RF Transistors
Quality Control: Learn More
MACOM Technology Solutions PH3134-30S is an NPN RF transistor designed for high-power applications. This component operates with a 65V collector-emitter breakdown voltage and can handle a maximum collector current of 3.6A, delivering up to 30W of power. The PH3134-30S features a typical gain of 7.5dB and is rated for operation up to 200°C junction temperature. Its chassis mount design facilitates efficient thermal management in demanding environments. This RF transistor is suitable for use in power amplifier stages within the telecommunications and industrial sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | - |
| Mounting Type | Chassis Mount |
| Transistor Type | NPN |
| Operating Temperature | 200°C (TJ) |
| Gain | 7.5dB |
| Power - Max | 30W |
| Current - Collector (Ic) (Max) | 3.6A |
| Voltage - Collector Emitter Breakdown (Max) | 65V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - |
| Frequency - Transition | - |
| Noise Figure (dB Typ @ f) | - |
| Supplier Device Package | - |
