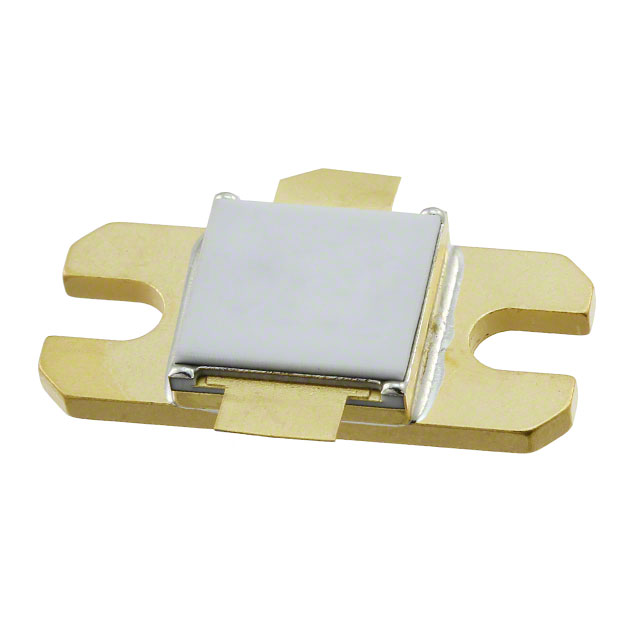

PH2729-130M
RF TRANS NPN 63VManufacturer: MACOM Technology Solutions
Categories: Bipolar RF Transistors
Quality Control: Learn More
MACOM Technology Solutions PH2729-130M is an NPN RF bipolar transistor designed for high-power applications. This chassis-mount component delivers up to 130W of power with a collector current capability of 12.5A and a collector-emitter breakdown voltage of 63V. It offers a typical gain range of 9.73dB to 8.85dB and is rated for operation at junction temperatures up to 200°C. The MACOM PH2729-130M is utilized in demanding RF power amplification circuits across various industries including telecommunications infrastructure and industrial RF systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | - |
| Mounting Type | Chassis Mount |
| Transistor Type | NPN |
| Operating Temperature | 200°C (TJ) |
| Gain | 9.73dB ~ 8.85dB |
| Power - Max | 130W |
| Current - Collector (Ic) (Max) | 12.5A |
| Voltage - Collector Emitter Breakdown (Max) | 63V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - |
| Frequency - Transition | - |
| Noise Figure (dB Typ @ f) | - |
| Supplier Device Package | - |
Request a Quote
