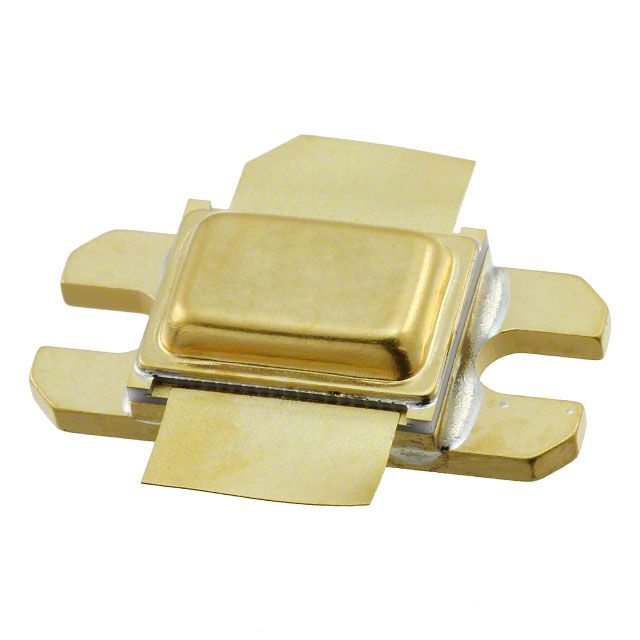

PH1090-550S
RF TRANS NPN 80VManufacturer: MACOM Technology Solutions
Categories: Bipolar RF Transistors
Quality Control: Learn More
MACOM Technology Solutions NPN RF Transistor, part number PH1090-550S. This high-power RF transistor features an 80V collector-emitter breakdown voltage and a 28A collector current capability, delivering up to 550W of output power. Designed for demanding RF power amplification applications, it is constructed for chassis mounting to facilitate efficient thermal management. The PH1090-550S is suitable for use in base station infrastructure, industrial heating, and defense systems. Operating at a maximum junction temperature of 200°C, this component offers robust performance in challenging environments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | - |
| Mounting Type | Chassis Mount |
| Transistor Type | NPN |
| Operating Temperature | 200°C (TJ) |
| Gain | 8.06dB |
| Power - Max | 550W |
| Current - Collector (Ic) (Max) | 28A |
| Voltage - Collector Emitter Breakdown (Max) | 80V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - |
| Frequency - Transition | - |
| Noise Figure (dB Typ @ f) | - |
| Supplier Device Package | - |
