PH1090-175L
RF TRANS NPN 80VManufacturer: MACOM Technology Solutions
Categories: Bipolar RF Transistors
Quality Control: Learn More

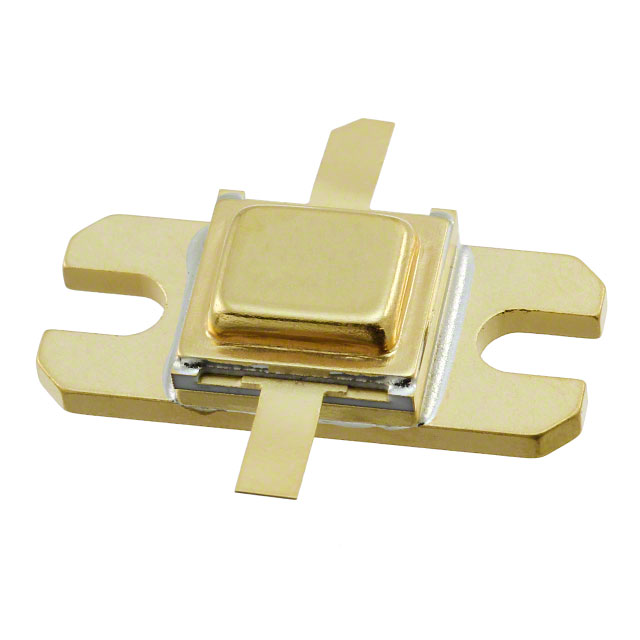

MACOM Technology Solutions PH1090-175L NPN RF Transistor. This chassis mount device features an 80V collector-emitter breakdown voltage and a maximum collector current of 10.5A. With a power dissipation rating of 188W, it is designed for high-power RF applications. The transistor offers a typical gain of 8.58dB and operates at junction temperatures up to 200°C. This component is suitable for demanding applications within the aerospace, defense, and industrial sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | - |
| Mounting Type | Chassis Mount |
| Transistor Type | NPN |
| Operating Temperature | 200°C (TJ) |
| Gain | 8.58dB |
| Power - Max | 188W |
| Current - Collector (Ic) (Max) | 10.5A |
| Voltage - Collector Emitter Breakdown (Max) | 80V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - |
| Frequency - Transition | - |
| Noise Figure (dB Typ @ f) | - |
| Supplier Device Package | - |
