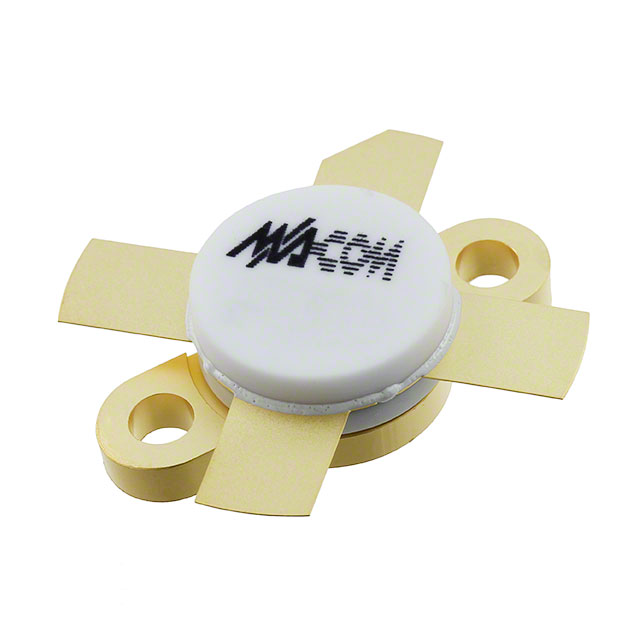

MRF422
RF TRANS NPN 35V 211-11Manufacturer: MACOM Technology Solutions
Categories: Bipolar RF Transistors
Quality Control: Learn More
MACOM Technology Solutions MRF422 NPN RF Power Transistor. This 35V, 20A device delivers 150W of power, featuring a minimum DC current gain of 15 at 5A, 5V. With a typical gain of 13dB, the MRF422 is designed for demanding RF applications. Its robust 211-11, Style 2 chassis mount package ensures reliable thermal management in high-power environments. This component is commonly utilized in industrial, medical, and defense communication systems where high-frequency power amplification is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 211-11, Style 2 |
| Mounting Type | Chassis Mount |
| Transistor Type | NPN |
| Operating Temperature | - |
| Gain | 13dB |
| Power - Max | 150W |
| Current - Collector (Ic) (Max) | 20A |
| Voltage - Collector Emitter Breakdown (Max) | 35V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 15 @ 5A, 5V |
| Frequency - Transition | - |
| Noise Figure (dB Typ @ f) | - |
| Supplier Device Package | 211-11, Style 2 |
