MRF392
RF TRANS 2NPN EMITTR 30V 744A-01Manufacturer: MACOM Technology Solutions
Categories: Bipolar RF Transistors
Quality Control: Learn More

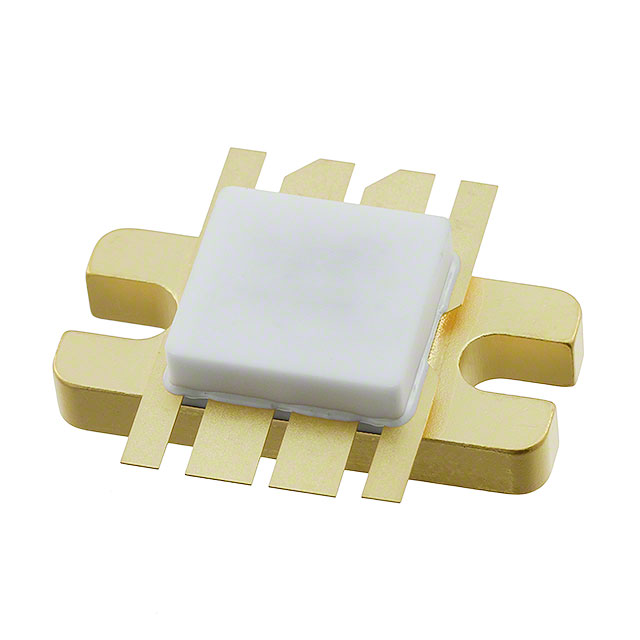

MACOM Technology Solutions MRF392 is a dual NPN common emitter RF power transistor. This device is designed for high-power applications, delivering 125W of power with a collector current of up to 16A. It features a 30V collector-emitter breakdown voltage and a minimum DC current gain of 40 at 1A, 5V. The MRF392 offers a typical gain of 10dB and is rated for operation up to a junction temperature of 200°C. Packaged in a 744A-01, Style 1 chassis mount configuration, this component is suitable for demanding applications in industrial and defense sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 744A-01 |
| Mounting Type | Chassis Mount |
| Transistor Type | 2 NPN (Dual) Common Emitter |
| Operating Temperature | 200°C (TJ) |
| Gain | 10dB |
| Power - Max | 125W |
| Current - Collector (Ic) (Max) | 16A |
| Voltage - Collector Emitter Breakdown (Max) | 30V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 1A, 5V |
| Frequency - Transition | - |
| Noise Figure (dB Typ @ f) | - |
| Supplier Device Package | 744A-01, Style 1 |
