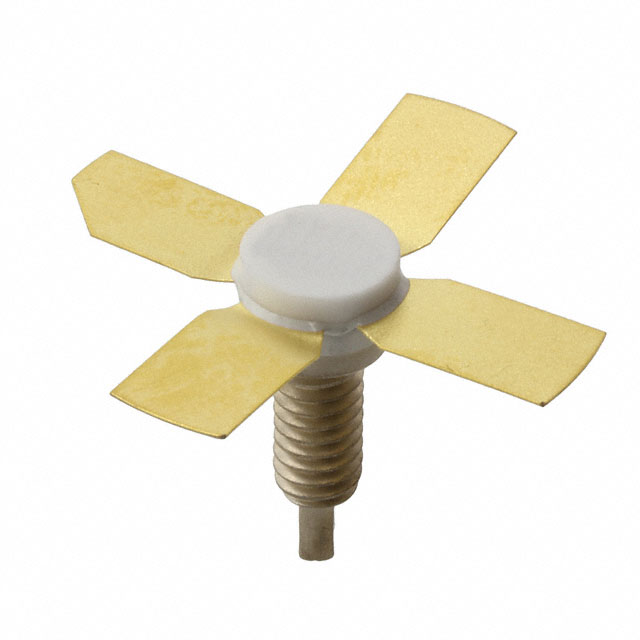

MRF323
TRANS RF NPN 33V 1.1A 244-04Manufacturer: MACOM Technology Solutions
Categories: Bipolar RF Transistors
Quality Control: Learn More
MACOM Technology Solutions MRF323 is an NPN bipolar RF transistor designed for high-power RF applications. This chassis-mount component delivers 20W of power with a collector current capability of up to 2.2A. It features a breakdown voltage of 33V and a minimum DC current gain (hFE) of 20 at 1A and 5V. The MRF323 offers a typical gain of 11dB and is packaged in a 244-04, STYLE 1 configuration, suitable for demanding RF power amplification stages. This device finds application in industrial, scientific, and medical (ISM) equipment, as well as broadcast transmitters.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 244-04 |
| Mounting Type | Chassis Mount |
| Transistor Type | NPN |
| Operating Temperature | - |
| Gain | 11dB |
| Power - Max | 20W |
| Current - Collector (Ic) (Max) | 2.2A |
| Voltage - Collector Emitter Breakdown (Max) | 33V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 20 @ 1A, 5V |
| Frequency - Transition | - |
| Noise Figure (dB Typ @ f) | - |
| Supplier Device Package | 244-04, STYLE 1 |
