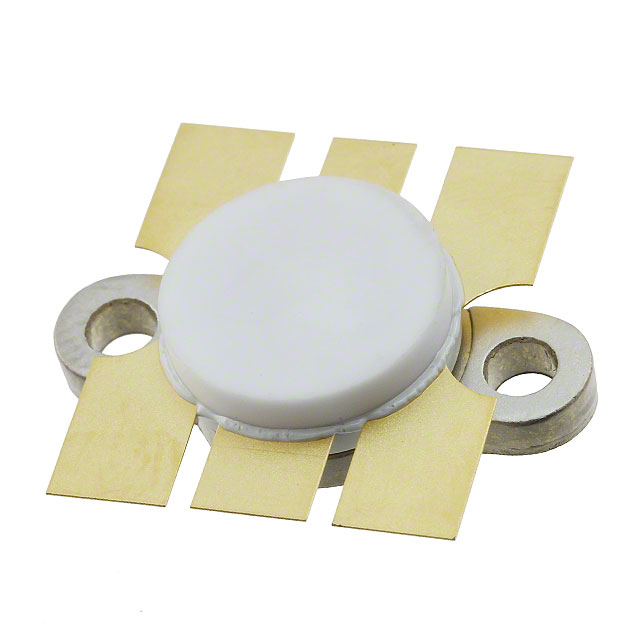

MRF317
TRANS RF NPN 35V 12A 316-01Manufacturer: MACOM Technology Solutions
Categories: Bipolar RF Transistors
Quality Control: Learn More
MACOM Technology Solutions MRF317 is an NPN bipolar RF transistor engineered for high-power applications. This chassis-mount device delivers 100W of power with a collector current capability of 12A and a collector-emitter breakdown voltage of 35V. Featuring a minimum DC current gain (hFE) of 10 at 5A and 5V, the MRF317 offers a typical gain of 10dB. The component is housed in a 316-01 package, style 1, suitable for robust thermal management. This RF transistor is commonly utilized in industrial, medical, and defense communication systems requiring reliable high-frequency power amplification.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 316-01 |
| Mounting Type | Chassis Mount |
| Transistor Type | NPN |
| Operating Temperature | - |
| Gain | 10dB |
| Power - Max | 100W |
| Current - Collector (Ic) (Max) | 12A |
| Voltage - Collector Emitter Breakdown (Max) | 35V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 10 @ 5A, 5V |
| Frequency - Transition | - |
| Noise Figure (dB Typ @ f) | - |
| Supplier Device Package | 316-01, STYLE 1 |
