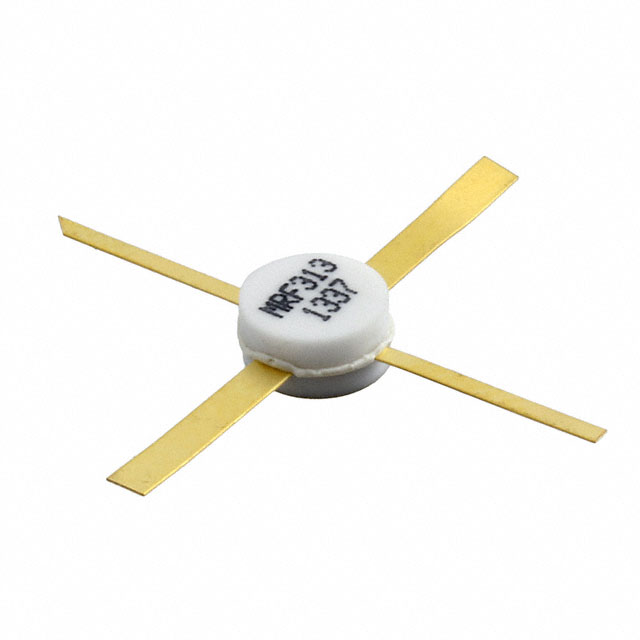

MRF313
TRANS RF NPN 30V 150MA 305A-01Manufacturer: MACOM Technology Solutions
Categories: Bipolar RF Transistors
Quality Control: Learn More
MACOM Technology Solutions MRF313 is an NPN bipolar RF transistor designed for high-frequency applications. This device offers a collector-emitter breakdown voltage of 30V and a maximum continuous collector current of 150mA. With a transition frequency of 2.5GHz and a typical gain of 16dB, the MRF313 is well-suited for RF power amplification stages. It features a minimum DC current gain (hFE) of 20 at 100mA and 10V. The transistor is housed in a 305A-01 package with a chassis mount type for efficient thermal management, delivering a maximum power output of 1W. This component finds application in wireless infrastructure, radar systems, and other demanding RF circuits.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 305A-01 |
| Mounting Type | Chassis Mount |
| Transistor Type | NPN |
| Gain | 16dB |
| Power - Max | 1W |
| Current - Collector (Ic) (Max) | 150mA |
| Voltage - Collector Emitter Breakdown (Max) | 30V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 20 @ 100mA, 10V |
| Frequency - Transition | 2.5GHz |
| Noise Figure (dB Typ @ f) | - |
| Supplier Device Package | 305A-01, Style 1 |
