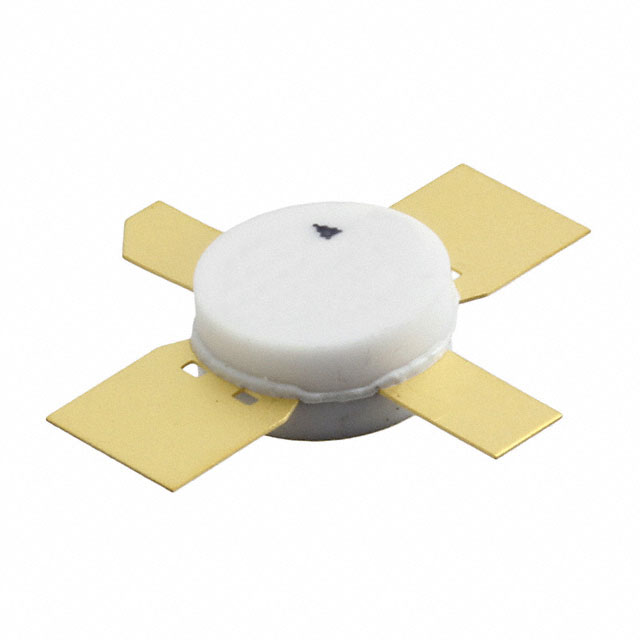

MRF1000MB
RF TRANS NPN 20V 332A-03Manufacturer: MACOM Technology Solutions
Categories: Bipolar RF Transistors
Quality Control: Learn More
RF Transistor NPN 20V 200mA 700mW Chassis Mount 332A-03, Style 2
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 332A-02 |
| Mounting Type | Chassis Mount |
| Transistor Type | NPN |
| Operating Temperature | - |
| Gain | 10.7dB ~ 12dB |
| Power - Max | 700mW |
| Current - Collector (Ic) (Max) | 200mA |
| Voltage - Collector Emitter Breakdown (Max) | 20V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 10 @ 100mA, 5V |
| Frequency - Transition | - |
| Noise Figure (dB Typ @ f) | - |
| Supplier Device Package | 332A-03, Style 2 |
