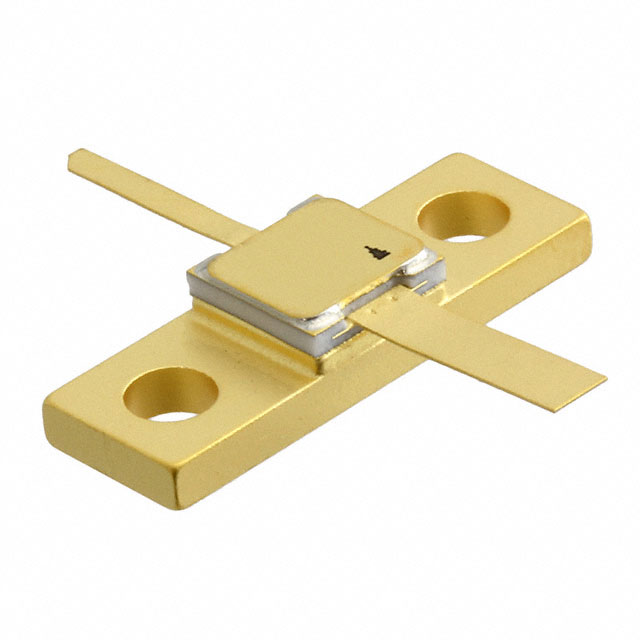

MRF10005
TRANS 5W 960MHZ-1215MHZManufacturer: MACOM Technology Solutions
Categories: Bipolar RF Transistors
Quality Control: Learn More
RF Transistor NPN 55V 1.25mA 25W Chassis Mount 336E-02, Style 1
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 336E-02 |
| Mounting Type | Chassis Mount |
| Transistor Type | NPN |
| Operating Temperature | 200°C (TJ) |
| Gain | 8.5dB ~ 10.3dB |
| Power - Max | 25W |
| Current - Collector (Ic) (Max) | 1.25mA |
| Voltage - Collector Emitter Breakdown (Max) | 55V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 20 @ 500mA, 5V |
| Frequency - Transition | - |
| Noise Figure (dB Typ @ f) | - |
| Supplier Device Package | 336E-02, Style 1 |
