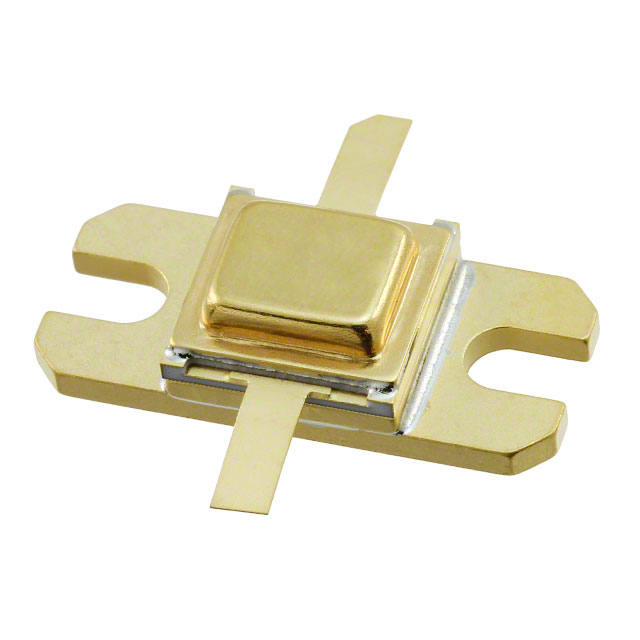

MAPRST0912-50
RF TRANS NPN 65VManufacturer: MACOM Technology Solutions
Categories: Bipolar RF Transistors
Quality Control: Learn More
MACOM Technology Solutions MAPRST0912-50 is an NPN RF transistor designed for high-power applications. This component offers a collector-emitter breakdown voltage of 65V and can handle a continuous collector current of 5.3A, delivering up to 50W of power output. With a typical gain range between 10.16dB and 10.25dB, it is suitable for demanding RF power amplifier designs. The chassis mount configuration ensures efficient thermal management, critical for sustained operation at its maximum junction temperature of 200°C. This device finds application in various high-frequency power systems, including industrial heating and RF power generation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | - |
| Mounting Type | Chassis Mount |
| Transistor Type | NPN |
| Operating Temperature | 200°C (TJ) |
| Gain | 10.16dB ~ 10.25dB |
| Power - Max | 50W |
| Current - Collector (Ic) (Max) | 5.3A |
| Voltage - Collector Emitter Breakdown (Max) | 65V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - |
| Frequency - Transition | - |
| Noise Figure (dB Typ @ f) | - |
| Supplier Device Package | - |
