M20001G-14

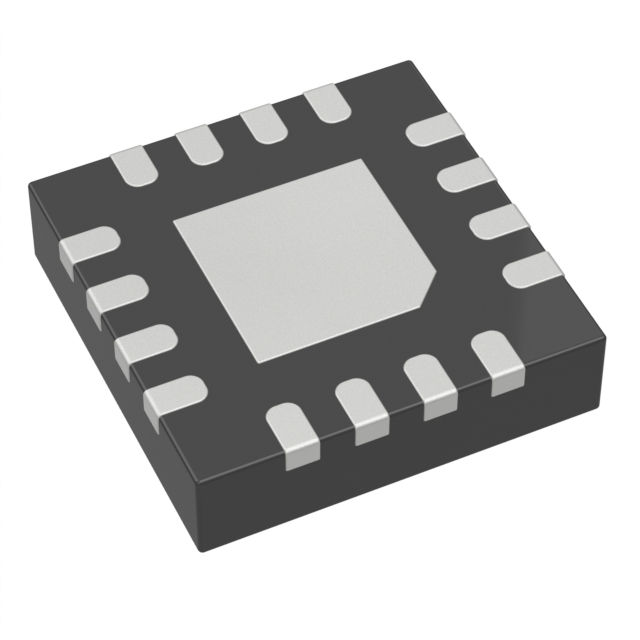

IC SWITCH SPDT X 2 15.5OHM 16QFNManufacturer: MACOM Technology Solutions
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
MACOM Technology Solutions M20001G-14 is a dual 2:1 SPDT (Single Pole Double Throw) analog switch. This component features a low on-resistance of 15.5 Ohms maximum and a -3dB bandwidth of 6GHz, making it suitable for high-frequency signal routing. Channel-to-channel matching for Ron is specified at 300 mOhms, and crosstalk is -30dB at 6GHz. The device operates from a single supply voltage ranging from 2.97V to 3.63V. Mounting is via surface mount technology, with the component supplied in a 16-QFN (3x3) package on tape and reel. Typical applications include test and measurement equipment, communication systems, and medical devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 15.5Ohm |
| -3db Bandwidth | 6GHz |
| Supplier Device Package | 16-QFN (3x3) |
| Voltage - Supply, Single (V+) | 2.97V ~ 3.63V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | - |
| Crosstalk | -30dB @ 6GHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 300mOhm |
| Switch Time (Ton, Toff) (Max) | - |
| Channel Capacitance (CS(off), CD(off)) | - |
| Current - Leakage (IS(off)) (Max) | - |
| Number of Circuits | 2 |
