LN-X-40K-90
LED MOD LNR LGT STRIP 4000K 22Manufacturer: Luxtech, LLC
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Luxtech, LLC LN-X-40K-90 is a neutral white Linear Light Strip LED Module. This component features a 4000K color temperature with a 3-step MacAdam Ellipse binning for precise color consistency. It offers a high Color Rendering Index (CRI) of 90, ensuring accurate color representation. The module operates with a typical forward voltage of 35V and can handle a maximum current of 1.1A. Its dimensions are 558.80mm in length and 19.99mm in width, with a height of 5.59mm. The viewing angle is a wide 120°, and it is designed with a flat lens type. This LED module is suitable for applications in general lighting, architectural lighting, and display lighting. It is packaged in a box.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 558.80mm L x 19.99mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 35V |
| Height | 5.59mm |
| Current - Test | - |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 1.1A |
| Lumens/Watt @ Current - Test | - |
| CCT (K) | 4000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | - |
Request a Quote
Clients Also Buy
FX-CC-10-C-35K-80-5
LED MOD WM WHT LNR STRP 3500K

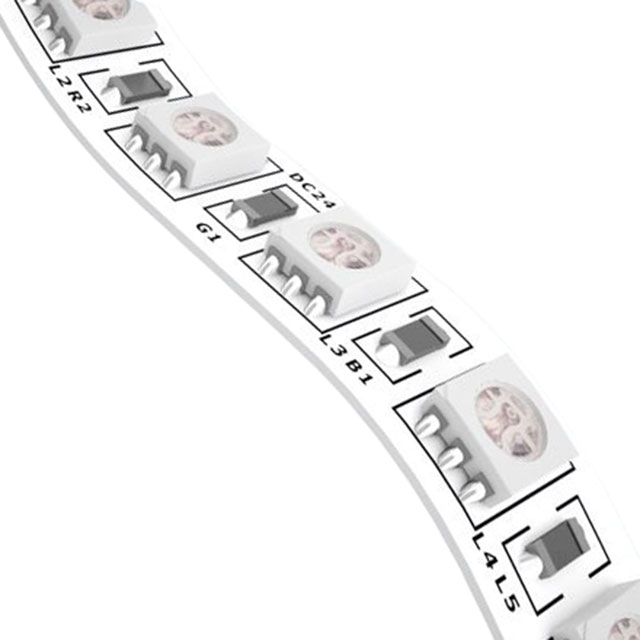

FX-RGB-25-5
