IS32FL3740-ZLA3-TR
IC LED DRV LIN PWM 84MA 20ETSSOPManufacturer: Lumissil Microsystems
Categories: LED Drivers
Quality Control: Learn More
Lumissil Microsystems IS32FL3740-ZLA3-TR is a 4-output linear LED driver IC designed for precise illumination control. This device features 84mA per channel output current capability, with integrated PWM dimming for granular brightness adjustment up to 1MHz. The IS32FL3740-ZLA3-TR utilizes a voltage supply range from 2.7V to 5.5V, making it suitable for a variety of power-sensitive applications. Its 20-eTSSOP package with an exposed pad ensures efficient thermal management for surface mount installations. This component is commonly employed in general-purpose lighting solutions across various industries requiring reliable and adjustable LED performance. The component is supplied on a tape and reel (TR) for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

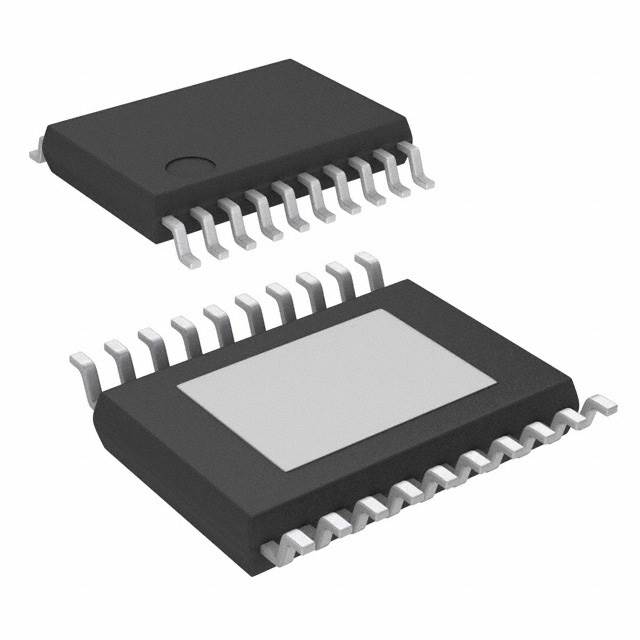

| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Voltage - Output | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Frequency | 1MHz |
| Type | Linear |
| Operating Temperature | -40°C ~ 125°C |
| Applications | General Purpose |
| Current - Output / Channel | 84mA |
| Internal Switch(s) | No |
| Topology | - |
| Supplier Device Package | 20-eTSSOP |
| Dimming | PWM |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
