IS32FL3209-QWLA3-TR
IC LED DRVR LIN PWM 78MA 28WFQFNManufacturer: Lumissil Microsystems
Categories: LED Drivers
Quality Control: Learn More

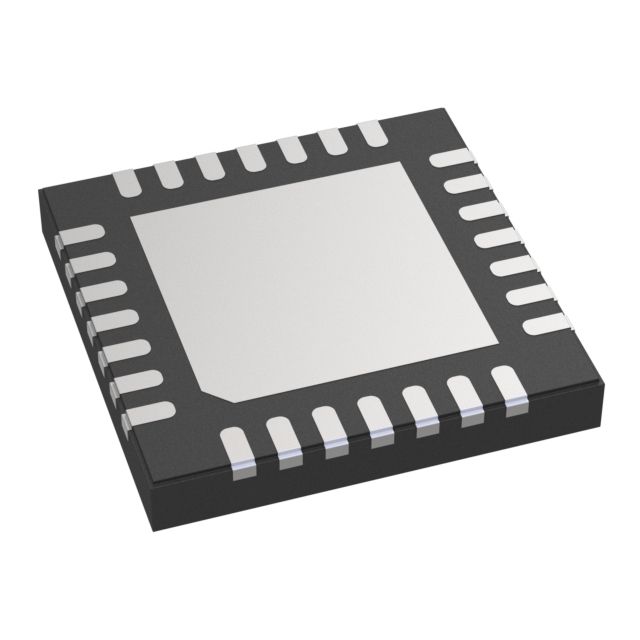

Lumissil Microsystems IS32FL3209-QWLA3-TR is an 18-output linear LED driver IC featuring constant current output with PWM dimming capability. Each channel delivers up to 78mA, controlled by an internal PWM dimming engine. This device is designed for surface mount applications with a 28-WFQFN (5x5) package, including wettable flank terminations for enhanced solder joint inspection. Operating from a 2.7V to 5.5V supply, the IS32FL3209-QWLA3-TR is qualified to AEC-Q100 standards, making it suitable for demanding automotive applications, as well as general lighting and display backlighting. The component operates within a temperature range of -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-WFQFN Exposed Pad |
| Voltage - Output | - |
| Mounting Type | Surface Mount, Wettable Flank |
| Number of Outputs | 18 |
| Frequency | - |
| Type | Linear |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Applications | - |
| Current - Output / Channel | 78mA |
| Internal Switch(s) | No |
| Topology | Constant Current |
| Supplier Device Package | 28-WFQFN (5x5) |
| Dimming | PWM |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
| Grade | Automotive |
| Qualification | AEC-Q100 |
