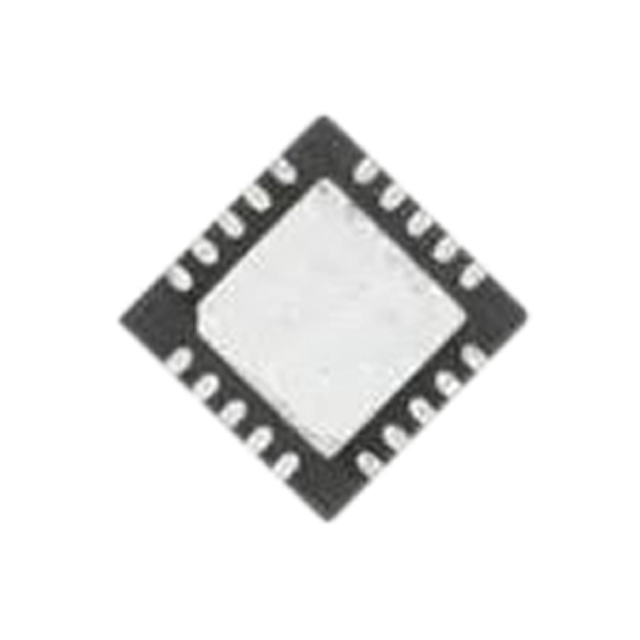

IS31FL3740-QFLS4-TR
IC LED DRVR LIN PWM 84MA 20QFNManufacturer: Lumissil Microsystems
Categories: LED Drivers
Quality Control: Learn More
Lumissil Microsystems IS31FL3740-QFLS4-TR is a 4-output linear LED driver IC designed for constant current applications with PWM dimming control. This device supports an output current of up to 84mA per channel and operates from a supply voltage range of 2.7V to 5.5V. Featuring internal switches, it simplifies design by integrating key driver functionality. The IS31FL3740-QFLS4-TR is supplied in a 20-QFN (5x5) package with an exposed pad for enhanced thermal performance and is available on tape and reel. Its capabilities make it suitable for various LED lighting applications, including general illumination and display backlighting. The operating temperature range is from -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-WQFN Exposed Pad |
| Voltage - Output | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Frequency | - |
| Type | Linear |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Applications | LED Lighting |
| Current - Output / Channel | 84mA |
| Internal Switch(s) | Yes |
| Topology | Constant Current |
| Supplier Device Package | 20-QFN (5x5) |
| Dimming | PWM |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
