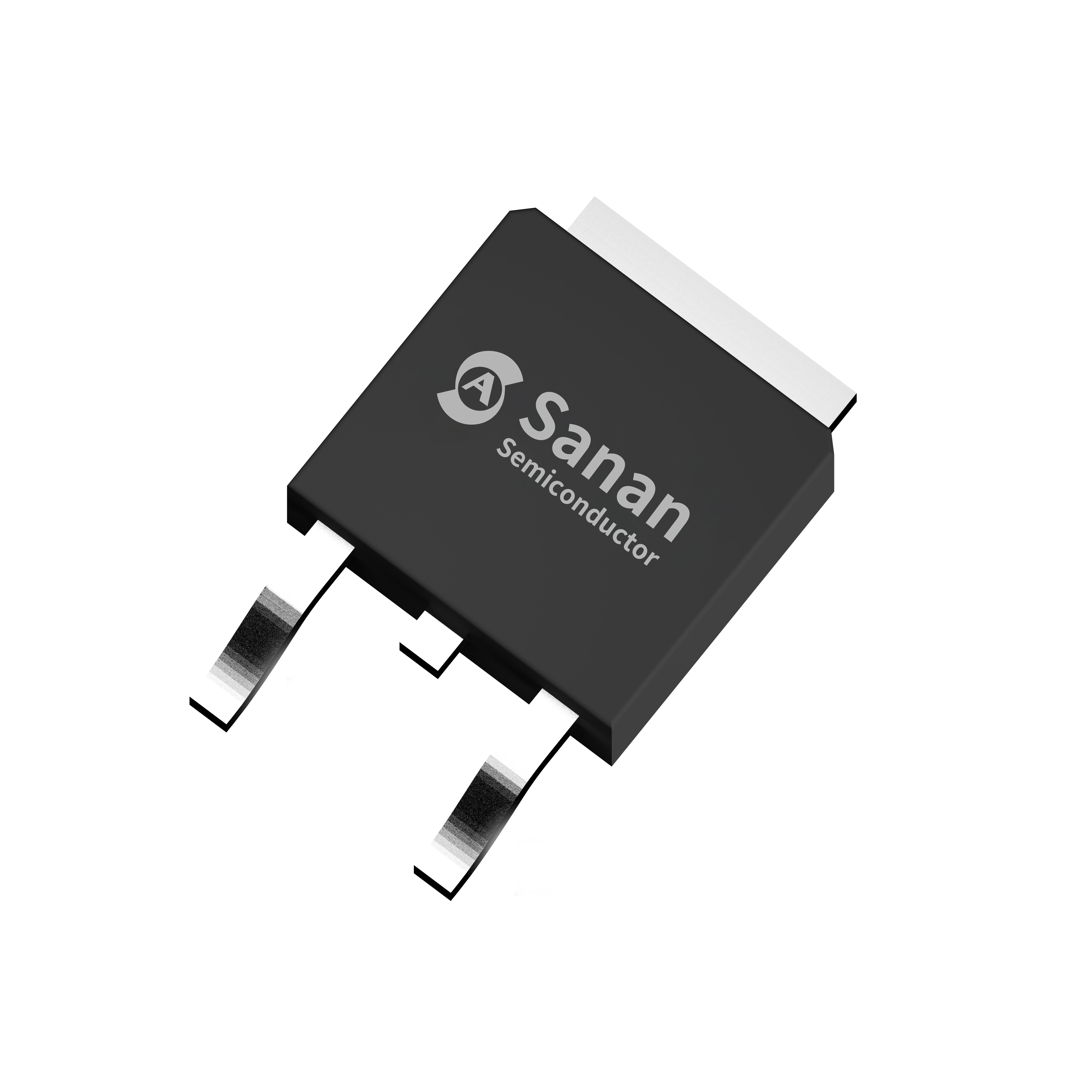

SDS120J005D3-ISARH
DIODE 1200V-5A TO252-2LManufacturer: Luminus Devices Inc.
Categories: Single Diodes
Quality Control: Learn More
Diode 1200 V 22A Surface Mount TO-252-2L
Additional Information
Series: Sanan TO252RoHS Status: ROHS3 CompliantManufacturer Lead Time: 7 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Technology | SiC (Silicon Carbide) Schottky |
| Capacitance @ Vr, F | 400pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 22A |
| Supplier Device Package | TO-252-2L |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 5 A |
| Current - Reverse Leakage @ Vr | 20 µA @ 1200 V |
