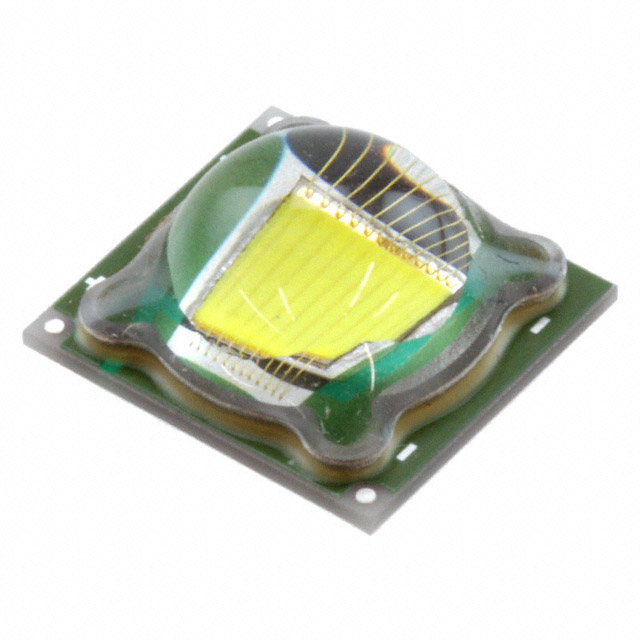

SST-90-W65S-F11-N3102
LED SST-90 COOL WHITE 6500K 3SMDManufacturer: Luminus Devices Inc.
Categories: LED White Lighting
Quality Control: Learn More
LED Lighting SST-90 White, Cool 6500K 3.25V 3.15A 100° 3-SMD, No Lead
Additional Information
Series: SST-90RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 3-SMD, No Lead |
| Color | White, Cool |
| Size / Dimension | 0.433"" L x 0.394"" W (11.00mm x 10.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.25V |
| Current - Test | 3.15A |
| Viewing Angle | 100° |
| Current - Max | 9A |
| Supplier Device Package | - |
| Lumens/Watt @ Current - Test | 95 lm/W |
| Height - Seated (Max) | 0.067"" (1.71mm) |
| CCT (K) | 6500K |
| CRI (Color Rendering Index) | 70 |
| Flux @ 25°C, Current - Test | 975lm (950lm ~ 1000lm) |
| Flux @ 85°C, Current - Test | - |
