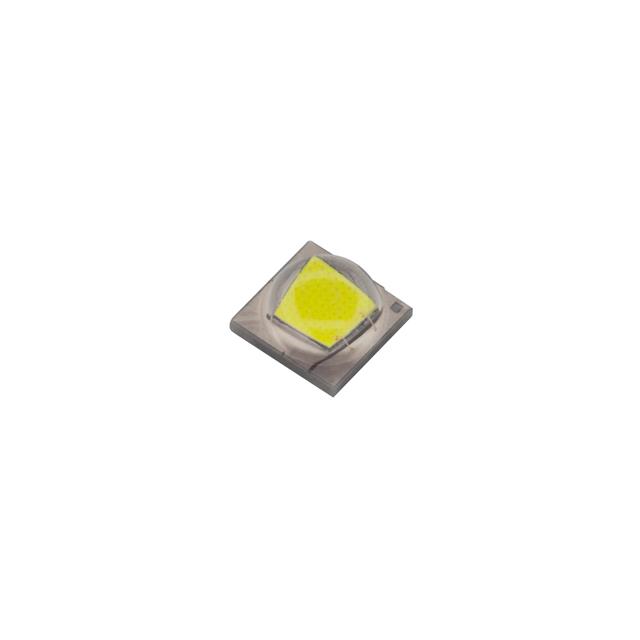

SST-40-WDS-F50-N4502
LED COOL WHITE 5000K 2020Manufacturer: Luminus Devices Inc.
Categories: LED White Lighting
Quality Control: Learn More
LED Lighting - White, Cool 5000K 2.9V 1.5A 120° 2020 (5050 Metric)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2020 (5050 Metric) |
| Color | White, Cool |
| Size / Dimension | 0.197"" L x 0.197"" W (5.00mm x 5.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.9V |
| Current - Test | 1.5A |
| Viewing Angle | 120° |
| Current - Max | 6A |
| Supplier Device Package | 2020 |
| Lumens/Watt @ Current - Test | 141 lm/W |
| Height - Seated (Max) | 0.124"" (3.14mm) |
| CCT (K) | 5000K |
| CRI (Color Rendering Index) | 65 |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 614lm (594lm ~ 634lm) |
