SST-20-W40H-A120-J5401
LED SST20 NEUTRAL WHT 4000K 1414Manufacturer: Luminus Devices Inc.
Categories: LED White Lighting
Quality Control: Learn More
Luminus Devices Inc. SST-20-W Horticulture series, part number SST-20-W40H-A120-J5401. This surface mount LED features a neutral white 4000K color temperature with a high 95 CRI. Designed for horticulture applications, it typically operates at 350mA with a forward voltage of 2.73V, delivering 118 lumens at a test current. The efficacy is 123 lm/W. The component is housed in a 1414 (3535 metric) package with dimensions of 3.45mm x 3.45mm and a seated height of 2.11mm. It offers a wide 120° viewing angle and is supplied on tape and reel. The maximum current rating is 2A.
Additional Information
Series: SST-20-W HorticultureRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1414 (3535 Metric) |
| Color | White, Neutral |
| Size / Dimension | 0.136"" L x 0.136"" W (3.45mm x 3.45mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.73V |
| Current - Test | 350mA |
| Viewing Angle | 120° |
| Current - Max | 2A |
| Supplier Device Package | 1414 |
| Lumens/Watt @ Current - Test | 123 lm/W |
| Height - Seated (Max) | 0.083"" (2.11mm) |
| CCT (K) | 4000K |
| CRI (Color Rendering Index) | 95 |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 118lm (114lm ~ 122lm) |
Request a Quote
Clients Also Buy

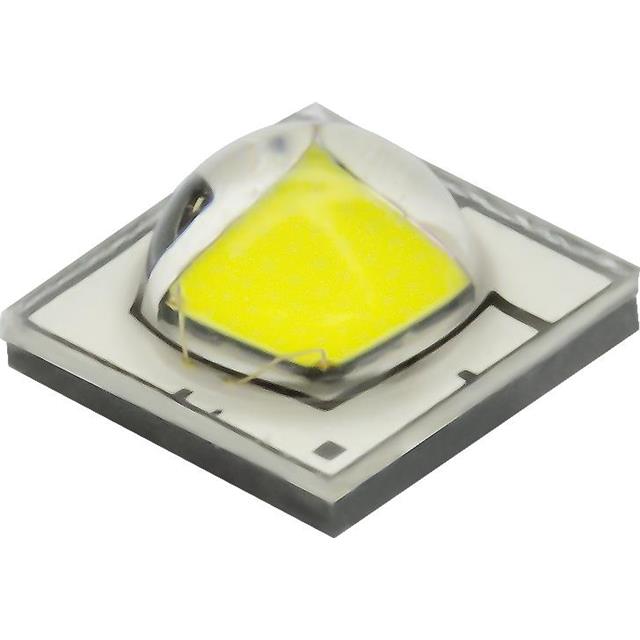

SST-20-WDS-A120-L3501
