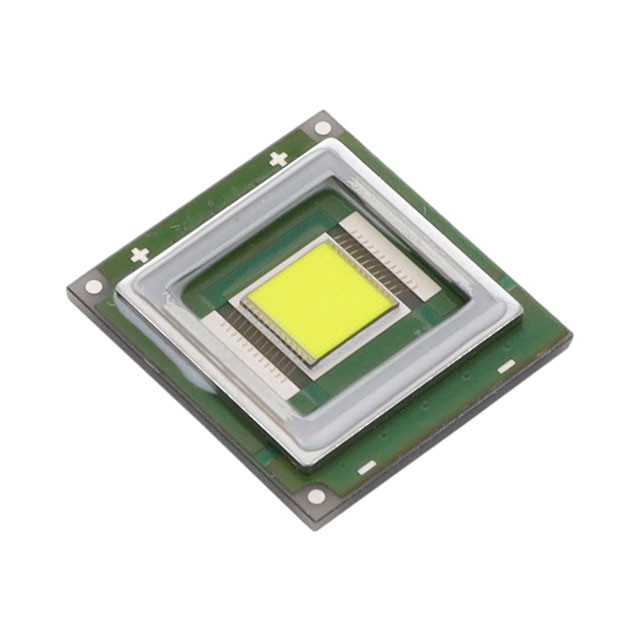

SBT-90-WDS-F72-SA600
LED WHITE 2SMDManufacturer: Luminus Devices Inc.
Categories: LED White Lighting
Quality Control: Learn More
LED Lighting - White 3.1V 9A 120° 2-SMD, No Lead Exposed Pad
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 9 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 2-SMD, No Lead Exposed Pad |
| Color | White |
| Size / Dimension | 0.394"" L x 0.433"" W (10.00mm x 11.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.1V |
| Current - Test | 9A |
| Viewing Angle | 120° |
| Current - Max | 18A |
| Supplier Device Package | - |
| Lumens/Watt @ Current - Test | 103 lm/W |
| Height - Seated (Max) | 0.067"" (1.71mm) |
| CCT (K) | - |
| CRI (Color Rendering Index) | 70 |
| Flux @ 25°C, Current - Test | 2885lm (2780lm ~ 2990lm) |
| Flux @ 85°C, Current - Test | - |
