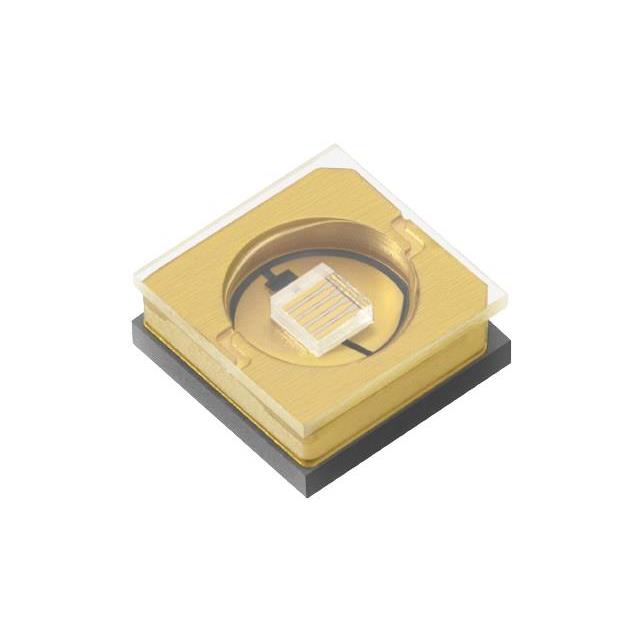

XBT-3535-UV-A130H-DB280-00
GEN 2 XBT-3535-285 NM SURFACE MOManufacturer: Luminus Devices Inc.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Ultraviolet (UV) Emitter 285nm (280nm ~ 290nm) 6.2V 800mA 130° 2-SMD, No Lead
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Wavelength | 285nm (280nm ~ 290nm) |
| Mounting Type | Surface Mount |
| Type | Ultraviolet (UV) |
| Orientation | Top View |
| Operating Temperature | 100°C (TJ) |
| Voltage - Forward (Vf) (Typ) | 6.2V |
| Viewing Angle | 130° |
| Current - DC Forward (If) (Max) | 800mA |
| Radiant Intensity (Ie) Min @ If | - |
| Grade | - |
| Qualification | - |
