SST-10-UV-B130-E365-00
UV MODManufacturer: Luminus Devices Inc.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

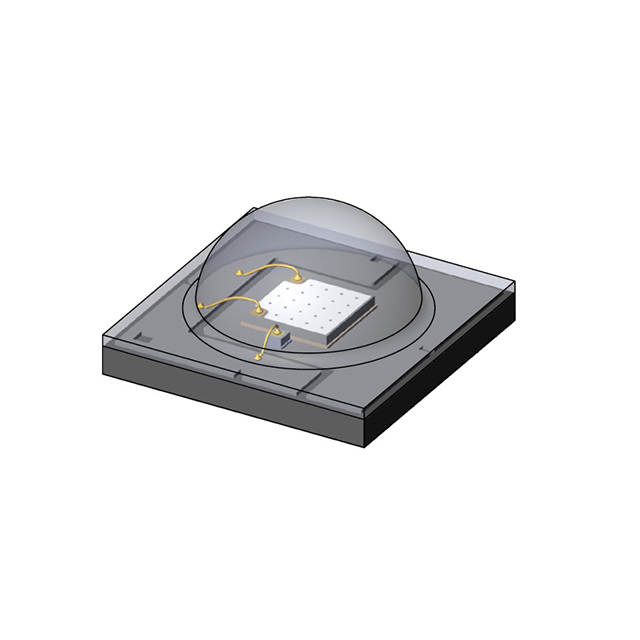

Luminus Devices Inc. SST-10-UV-B130-E365-00 is a surface-mount UV emitter designed for specialized applications. This component delivers ultraviolet light with a peak wavelength of 370nm, within a range of 365nm to 375nm. It operates with a typical forward voltage of 3.7V and can handle a DC forward current of up to 1A. The emitter features a wide 130° viewing angle and is housed in a 1414 (3535 Metric) package. Engineered for demanding environments, it maintains operation at junction temperatures up to 100°C. This UV emitter is commonly utilized in horticulture lighting, sterilization, and curing applications. The SST-10-UV Horticulture series component is supplied on tape and reel for efficient automated assembly.
Additional Information
Series: SST-10-UV HorticultureRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1414 (3535 Metric) |
| Wavelength | 370nm (365nm ~ 375nm) |
| Mounting Type | Surface Mount |
| Type | Ultraviolet (UV) |
| Orientation | Top View |
| Operating Temperature | 100°C (TJ) |
| Voltage - Forward (Vf) (Typ) | 3.7V |
| Viewing Angle | 130° |
| Current - DC Forward (If) (Max) | 1A |
| Radiant Intensity (Ie) Min @ If | - |
