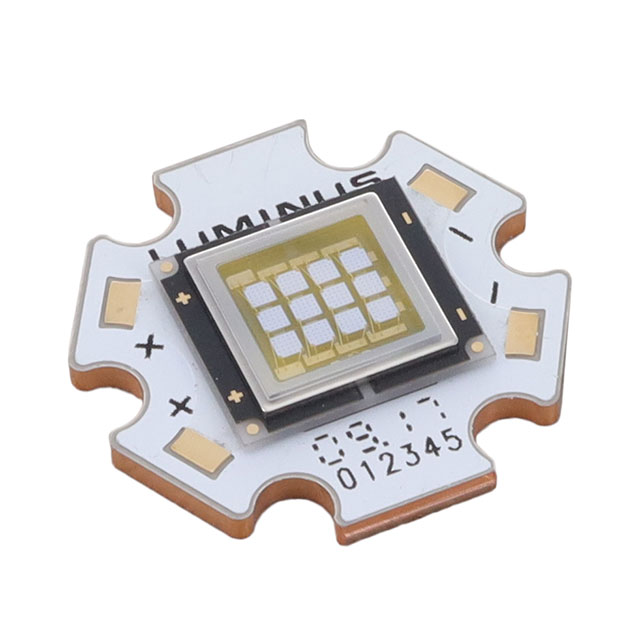

SBM-120-UV-R34-M395-22
SMT ULTRAVIOLET LEDManufacturer: Luminus Devices Inc.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Luminus Devices Inc. SBM-120-UV series ultraviolet (UV) emitter, part number SBM-120-UV-R34-M395-22. This SMT device features a Star Array package for surface mounting and offers a UV output wavelength range of 390nm to 400nm. The typical forward voltage is 13.2V. Designed for demanding applications, this component is suitable for use in industries such as medical diagnostics, curing systems, and specialty lighting. The operating temperature range extends to 125°C (TJ). The component is supplied in a tray.
Additional Information
Series: SBM-120-UVRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Star Array |
| Wavelength | 390nm ~ 400nm |
| Mounting Type | Surface Mount |
| Type | Ultraviolet (UV) |
| Orientation | Top View |
| Operating Temperature | 125°C (TJ) |
| Voltage - Forward (Vf) (Typ) | 13.2V |
| Viewing Angle | - |
| Current - DC Forward (If) (Max) | - |
| Radiant Intensity (Ie) Min @ If | - |
Request a Quote
Clients Also Buy

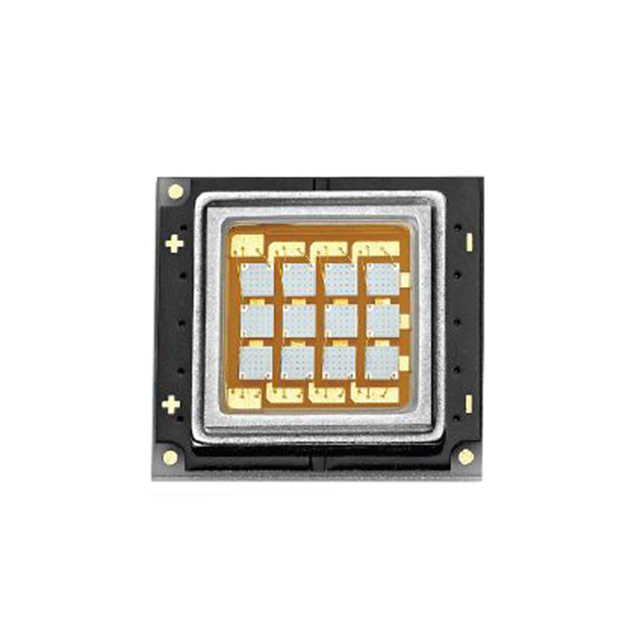

SBM-120-UV-F34-I365-22
