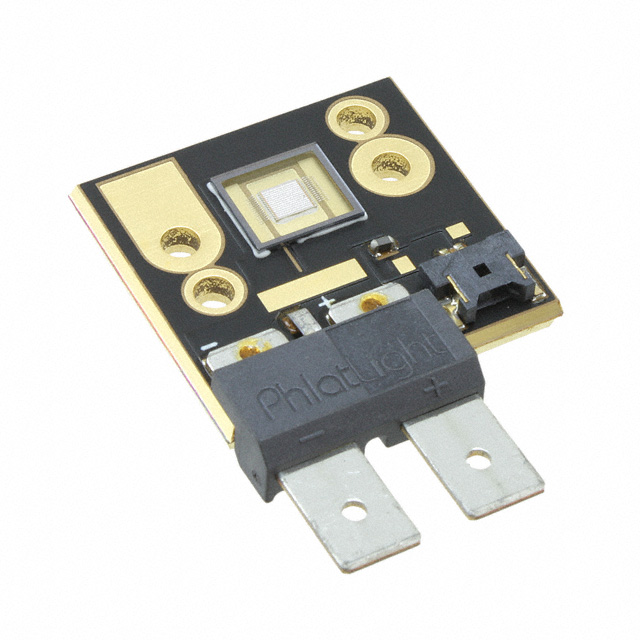

CBT-90-UV-C31-GB400-22
EMITTER UV 405NM 22.5A MODULEManufacturer: Luminus Devices Inc.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
The Luminus Devices Inc. CBT-90-UV-C31-GB400-22 is a high-power ultraviolet emitter module designed for demanding applications. This component features a 400nm wavelength, delivering potent UV output with a typical forward voltage of 3.4V and a maximum DC forward current rating of 22.5A. Its robust construction is suitable for chassis mounting and operates effectively at junction temperatures up to 150°C. The top-view orientation and module package facilitate integration into various systems. This ultraviolet emitter finds extensive use in industries such as industrial curing, sterilization, analytical instrumentation, and advanced material processing where precise and powerful UV light sources are critical.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Wavelength | 400nm |
| Mounting Type | Chassis Mount |
| Type | Ultraviolet (UV) |
| Orientation | Top View |
| Operating Temperature | 150°C (TJ) |
| Voltage - Forward (Vf) (Typ) | 3.4V |
| Viewing Angle | - |
| Current - DC Forward (If) (Max) | 22.5A |
| Radiant Intensity (Ie) Min @ If | - |
