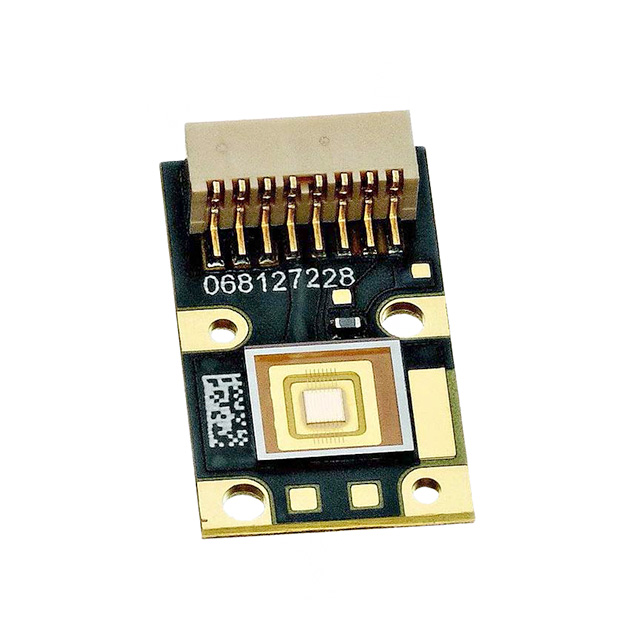

CBT-39-UV-C32-EA400-22
BIG CHIP UV LED 405NMManufacturer: Luminus Devices Inc.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Luminus Devices Inc. CBT-39-UV-C32-EA400-22 is a high-power ultraviolet LED emitter operating at 405nm. This module features a 3.5V forward voltage and a maximum DC forward current of 6A, delivering significant UV output. Designed for robust performance, it boasts a junction temperature rating of 150°C and utilizes a convenient screw mount for integration. The CBT-39-UV-C32-EA400-22 is suitable for applications in areas such as UV curing, sterilization, and scientific instrumentation. Packaged in a tray, this component is engineered for demanding industrial and commercial use.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Wavelength | 400nm |
| Mounting Type | Screw Mount |
| Type | Ultraviolet (UV) |
| Orientation | Top View |
| Operating Temperature | 150°C (TJ) |
| Voltage - Forward (Vf) (Typ) | 3.5V |
| Viewing Angle | - |
| Current - DC Forward (If) (Max) | 6A |
| Radiant Intensity (Ie) Min @ If | - |
