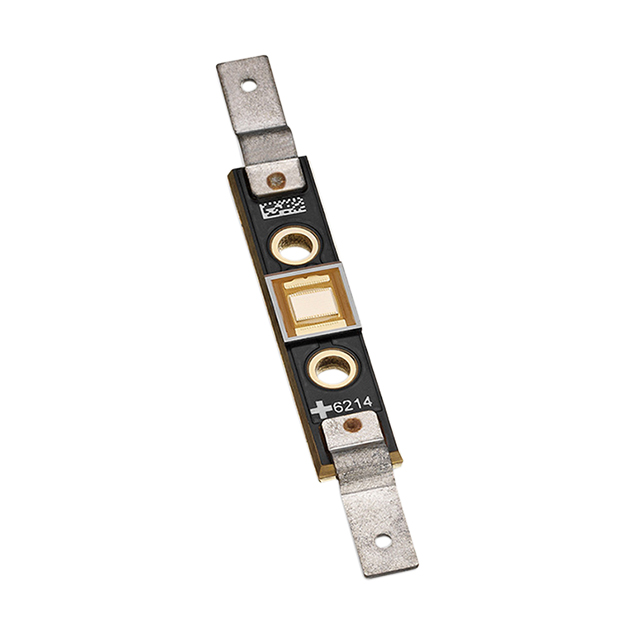

CBT-120-UV-C14-N382-22
EMITTER UV 387NM 30A MODULEManufacturer: Luminus Devices Inc.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Luminus Devices Inc. CBT-120-UV-C14-N382-22 is a high-power Ultraviolet (UV) emitter module, specifically designed for applications requiring robust UV output. This component operates at a peak wavelength of 382nm, delivering a typical forward voltage of 3.7V and supporting a maximum DC forward current of 30A. Engineered for demanding environments, it features a chassis mount for secure integration into thermal management systems and boasts an operating junction temperature of up to 150°C. The top-view orientation and module package facilitate straightforward assembly. This UV emitter is suitable for various industrial and scientific applications, including curing, sterilization, and material analysis where precise and powerful UV radiation is essential.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Wavelength | 382nm |
| Mounting Type | Chassis Mount |
| Type | Ultraviolet (UV) |
| Orientation | Top View |
| Operating Temperature | 150°C (TJ) |
| Voltage - Forward (Vf) (Typ) | 3.7V |
| Viewing Angle | - |
| Current - DC Forward (If) (Max) | 30A |
| Radiant Intensity (Ie) Min @ If | - |
