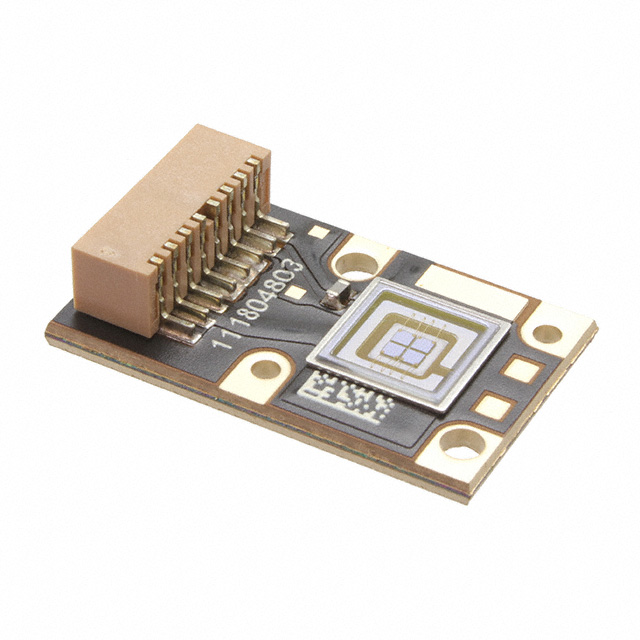

CBM-40-UV-X32-DC380-22
EMITTER MODULEManufacturer: Luminus Devices Inc.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Luminus Devices Inc. CBM-40-UV-X32-DC380-22 is a UV emitter module from the Mosaic Array series, featuring a peak wavelength of 388nm with a typical operating range of 385nm to 390nm. This surface-mount component operates with a forward voltage of 3.5V and can handle a DC forward current of up to 8A. Designed for high-flux UV applications, it is often employed in industries such as medical device sterilization, curing processes, and advanced material analysis. The module offers a top-view orientation and is rated for operation up to a junction temperature of 125°C. It is supplied in tray packaging.
Additional Information
Series: Mosaic ArrayRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Wavelength | 388nm (385nm ~ 390nm) |
| Mounting Type | Surface Mount |
| Type | Ultraviolet (UV) |
| Orientation | Top View |
| Operating Temperature | 125°C (TJ) |
| Voltage - Forward (Vf) (Typ) | 3.5V |
| Viewing Angle | - |
| Current - DC Forward (If) (Max) | 8A |
| Radiant Intensity (Ie) Min @ If | - |
