CBM-40-UV-X32-DA400-22
EMITTER MODULEManufacturer: Luminus Devices Inc.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

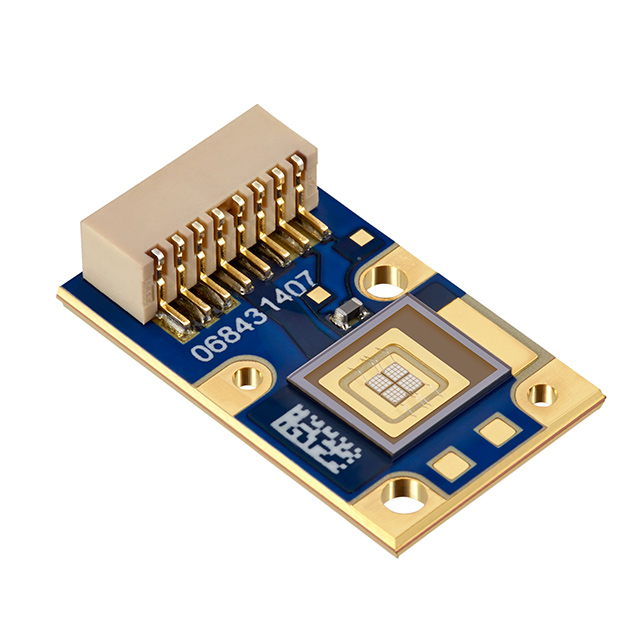

Luminus Devices Inc. CBM-40-UV-X32-DA400-22 is a Mosaic Array emitter module featuring a 408nm (405nm ~ 410nm) ultraviolet output. This high-power module operates with a typical forward voltage of 3.3V and a maximum DC forward current of 8A. Engineered for demanding applications, it offers a surface mount capability and a top-view orientation. The component is rated for an operating junction temperature of up to 125°C. This UV emitter module is suitable for use in areas such as curing, sterilization, and advanced material processing.
Additional Information
Series: Mosaic ArrayRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Wavelength | 408nm (405nm ~ 410nm) |
| Mounting Type | Surface Mount |
| Type | Ultraviolet (UV) |
| Orientation | Top View |
| Operating Temperature | 125°C (TJ) |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Viewing Angle | - |
| Current - DC Forward (If) (Max) | 8A |
| Radiant Intensity (Ie) Min @ If | - |
