SBM-160-RGBW-H41-RF100
LED SBM160 RGBW 623/530/458/7100Manufacturer: Luminus Devices Inc.
Categories: LED Color Lighting
Quality Control: Learn More
Luminus Devices Inc. SBM-160 series RGBW LED module, part number SBM-160-RGBW-H41-RF100. This 8-SMD component provides a cool white output at 7100K, alongside discrete Red (623nm), Green (530nm), and Blue (458nm) emitters. Each color channel supports a maximum forward current of 4A. Typical forward voltages are 2.6V for Red, 4.6V for Green, and 3.8V for Blue and White emitters. At a test current of 4A and 25°C, luminous flux outputs are 320lm (Red), 740lm (Green), 110lm (Blue), and 590lm (White). Efficacy ratings are 31 lm/W (Red), 40 lm/W (Green), 7 lm/W (Blue), and 39 lm/W (White). The module measures 11.00mm x 10.00mm with a seated height of 1.82mm. This component is suitable for applications in architectural lighting, stage lighting, and general illumination systems. Supplied in trays.
Additional Information
Series: SBM-160RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 8-SMD Module |
| Color | Red, Green, Blue, White - Cool (RGBW) |
| Wavelength | 623nm Red, 530nm Green, 458nm Blue, 7100K White |
| Size / Dimension | 0.433"" L x 0.394"" W (11.00mm x 10.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.6V Red, 4.6V Green, 3.8V Blue, 3.8V White |
| Current - Test | 4A Red, 4A Green, 4A Blue, 4A White |
| Viewing Angle | - |
| Current - Max | 4A Red, 4A Green, 4A Blue, 4A White |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 31 lm/W Red, 40 lm/W Green, 7 lm/W Blue, 39 lm/W White |
| Height - Seated (Max) | 0.072"" (1.82mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 320lm Red, 740lm Green, 110lm Blue, 590lm White |
Request a Quote
Clients Also Buy
SBM-160-RGBW-H41-RD100
LED SBM160 RGBW 622/525/455/6100

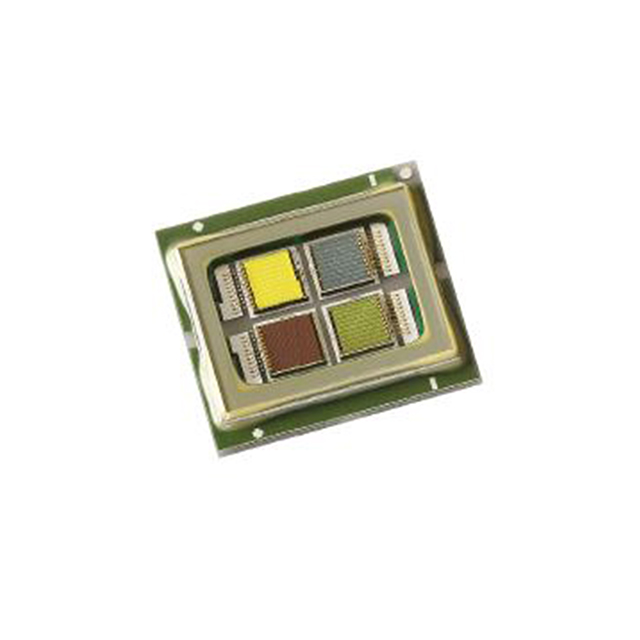

SBM-160-RGBW-H41-RE102
LED SBM160 RGBW 623/530/458/7100

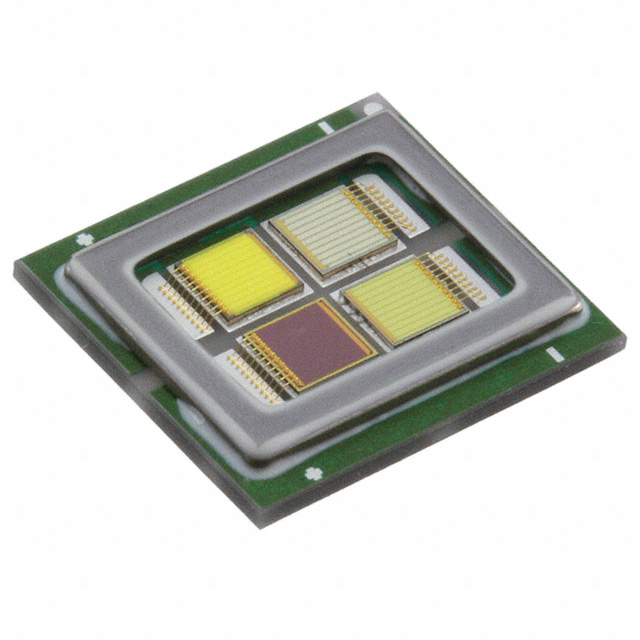

SBM-160-RGBW-H41-RG101
