SST-50-W65S-F21-J2101
LED COB SST-50 COOL WH SQ 6500KManufacturer: Luminus Devices Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

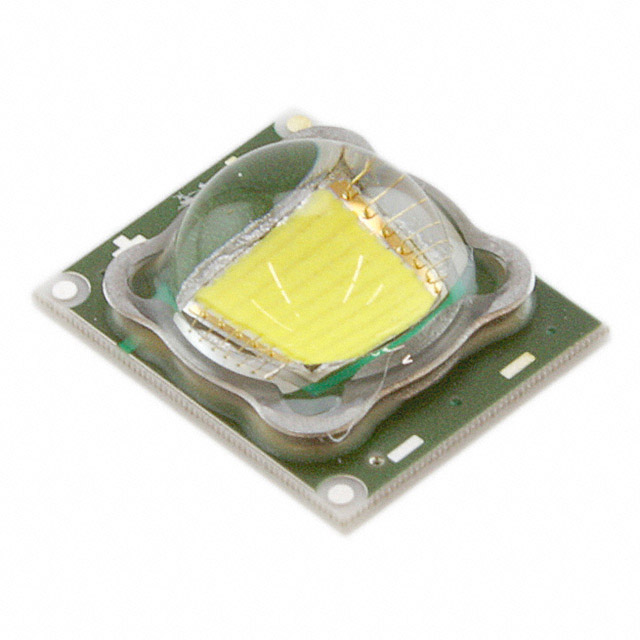

Luminus Devices Inc. SST-50 White COB LED, part number SST-50-W65S-F21-J2101, offers a cool white light with a correlated color temperature (CCT) of 6500K. This Chip On Board (COB) module features a square light-emitting surface (LES) with a 5.60mm diameter and a domed lens type, providing a 100° viewing angle. Operating at a typical forward voltage of 3.2V, this component is rated for a maximum current of 5A, with test conditions at 1.75A and 25°C yielding 83 lm/W and 463 lumens. The SST-50 series module is supplied in trays and is suitable for applications requiring efficient illumination in the automotive, industrial, and architectural lighting sectors. Its dimensions are 7.30mm L x 9.00mm W with a height of 4.30mm.
Additional Information
Series: SST-50RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 7.30mm L x 9.00mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Height | 4.30mm |
| Current - Test | 1.75A |
| Viewing Angle | 100° |
| Lens Type | Domed |
| Current - Max | 5A |
| Lumens/Watt @ Current - Test | 83 lm/W |
| CCT (K) | 6500K |
| CRI (Color Rendering Index) | 70 |
| Light Emitting Surface (LES) | 5.60mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 463lm (450lm ~ 475lm) |
