SSR-90-R-R11-HJ102
LED MOD SSR-90 RED STARBOARDManufacturer: Luminus Devices Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Luminus Devices Inc. SSR-90-R-R11-HJ102 is a high-flux LED module from the SSR-90 series, featuring a red emission with a peak wavelength of 619nm. This component is mounted on a Starboard configuration for efficient thermal management. The module operates with a typical forward voltage of 2.1V and can handle a maximum current of 18A. At a test current of 3.15A and 25°C, it achieves a luminous flux of 540 lumens and a luminous efficacy of 103 lm/W. The LED module has a diameter of 19.90mm and a height of 7.10mm, with a light-emitting surface measuring 3.00mm x 3.00mm. This product is commonly utilized in automotive lighting, stage lighting, and general illumination applications requiring high-intensity red light.
Additional Information
Series: SSR-90RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | Red |
| Wavelength | 619nm (615nm ~ 623nm) |
| Size / Dimension | 19.90mm Dia |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Height | 7.10mm |
| Current - Test | 3.15A |
| Viewing Angle | - |
| Lens Type | Domed |
| Current - Max | 18A |
| Lumens/Watt @ Current - Test | 103 lm/W |
| CCT (K) | - |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | 3.00mm L x 3.00mm W |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 540lm (Typ) |
Request a Quote
Clients Also Buy

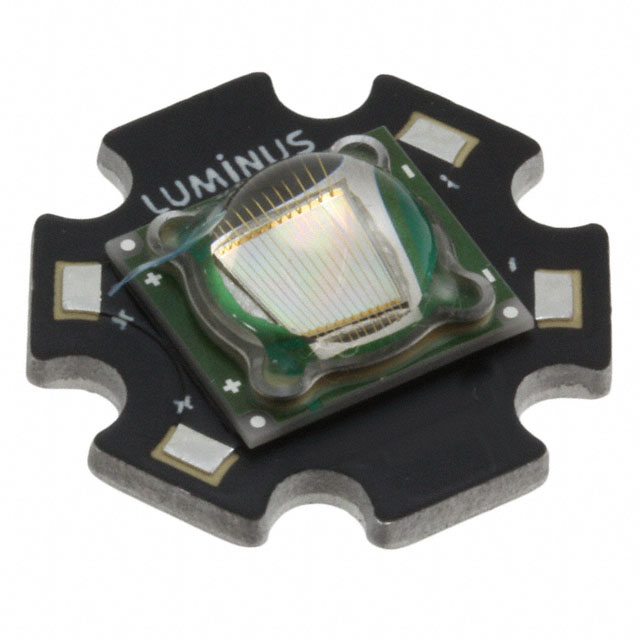

SSR-90-B-R11-KF300
LED MOD SSR-90 BLUE STARBOARD
SSR-90-B-R11-KF301
LED MOD SSR-90 BLUE STARBOARD

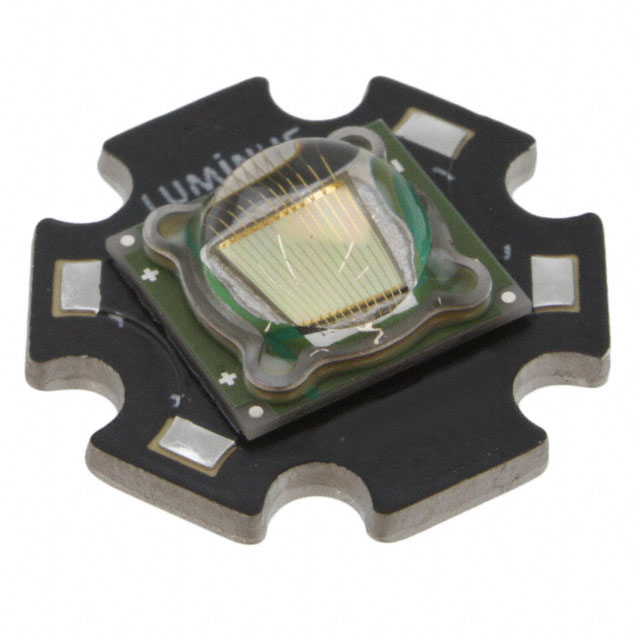

SSR-90-G-R11-JG200
