SSR-50-W57S-R21-J3201
LED MOD SSR-50 WH STARBRD 5700KManufacturer: Luminus Devices Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Luminus Devices Inc. SSR-50-W57S-R21-J3201 is a White Cool LED Module from the SSR-50 series. This component features a 5.60mm diameter Light Emitting Surface (LES) and a domed lens type, providing a 100° viewing angle. It operates with a typical forward voltage of 3.2V and a maximum current of 5A, delivering 488 lumens at a test current of 1.75A and 25°C. The module exhibits a luminous efficacy of 87 lm/W at the test current and a Color Rendering Index (CRI) of 70, with a correlated color temperature (CCT) of 5700K. Designed for efficient illumination, this LED module is commonly utilized in general lighting, architectural lighting, and industrial lighting applications. The component is supplied in Tray packaging and measures 19.90mm in length by 19.90mm in width with a height of 6.10mm.
Additional Information
Series: SSR-50RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 19.90mm L x 19.90mm W |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Height | 6.10mm |
| Current - Test | 1.75A |
| Viewing Angle | 100° |
| Lens Type | Domed |
| Current - Max | 5A |
| Lumens/Watt @ Current - Test | 87 lm/W |
| CCT (K) | 5700K |
| CRI (Color Rendering Index) | 70 |
| Light Emitting Surface (LES) | 5.60mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 488lm (475lm ~ 500lm) |
Request a Quote
Clients Also Buy

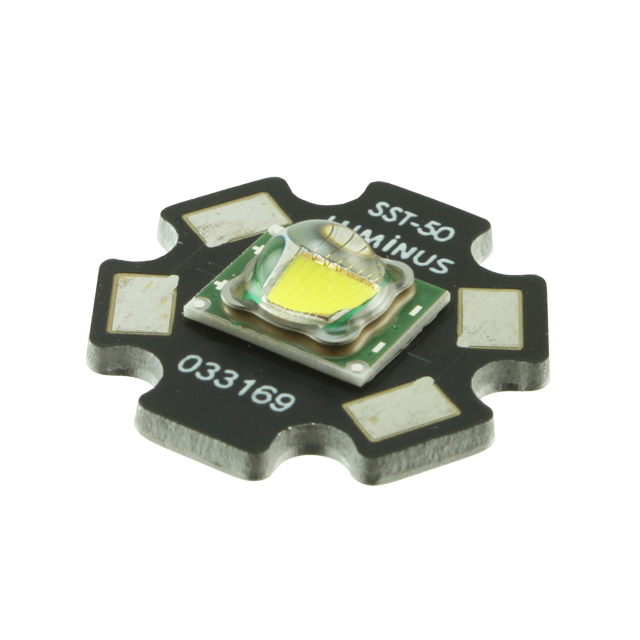

SSR-50-W30M-R21-GG700
LED MOD SSR-50 WHT STARBOARD

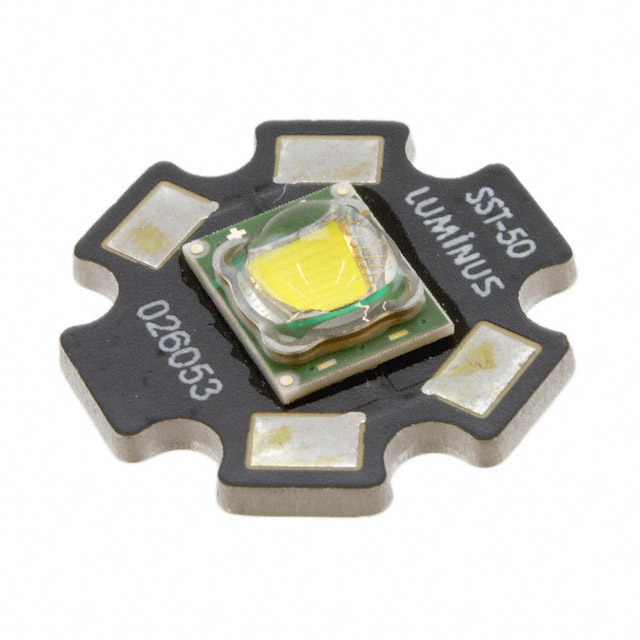

SSR-50-W45S-R21-GJ400
