SBR-70-WTH-R75-HB720
LED COB SBT-70 WH STARBRD 3190KManufacturer: Luminus Devices Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

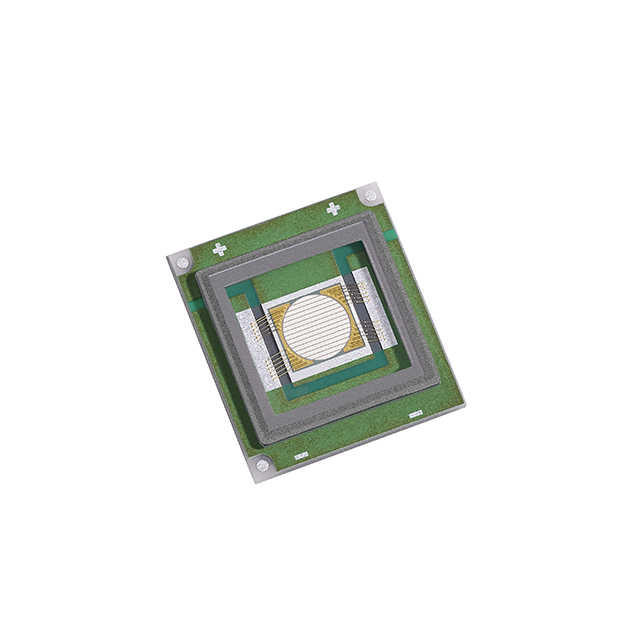

Luminus Devices Inc. SBT-70 series Chip On Board (COB) LED, part number SBR-70-WTH-R75-HB720. This warm white LED features a correlated color temperature (CCT) range of 2725K to 3190K and a Color Rendering Index (CRI) of 75. The device is mounted on a starboard configuration with a 3.00mm diameter Light Emitting Surface (LES) and a flat lens type. Rated for a maximum current of 10.5A, it delivers a typical luminous flux of 870 lumens at 3.7V forward voltage. At a test current of 10.5A and 25°C, it achieves 22 lumens per watt. This COB LED is suitable for applications in general illumination and architectural lighting. Packaged in a tray.
Additional Information
Series: SBT-70RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 19.90mm Dia |
| Type | Chip On Board (COB) |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 3.7V |
| Height | 3.44mm |
| Current - Test | 10.5A |
| Viewing Angle | - |
| Lens Type | Flat |
| Current - Max | 10.5A |
| Lumens/Watt @ Current - Test | 22 lm/W |
| CCT (K) | 2725K ~ 3190K |
| CRI (Color Rendering Index) | 75 |
| Light Emitting Surface (LES) | 3.00mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 870lm (840lm ~ 900lm) |
