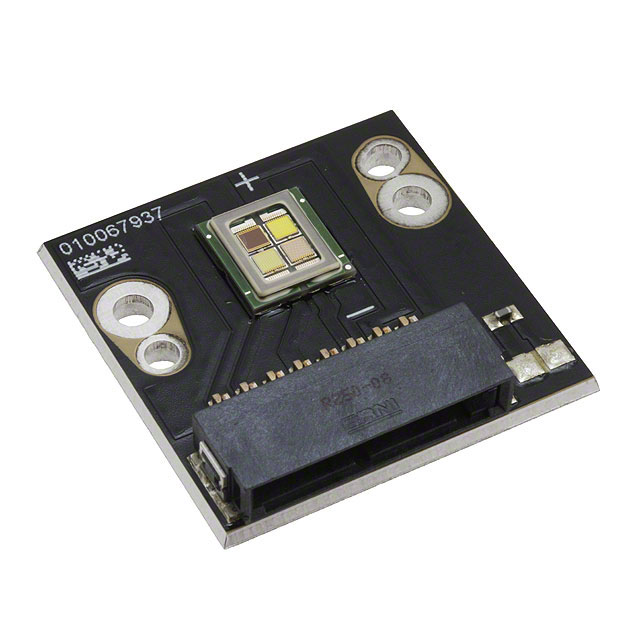

SBR-160-RGBW-H41-RE102
LED MOD SBR-160 RGBW SQU 6500KManufacturer: Luminus Devices Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Luminus Devices Inc. SBR-160 series LED module, part number SBR-160-RGBW-H41-RE102, offers a square configuration with a 36.00mm x 36.00mm footprint and 8.72mm height. This LED module features Red, Green, Blue, and White (6500K) color output, providing a versatile lighting solution. Key electrical specifications include a maximum and test current of 4A for each color channel (Red, Green, Blue, White) and typical forward voltages of 2.6V (Red), 4.6V (Green), and 3.8V (Blue and White). Luminous flux figures are 320lm (Red), 820lm (Green), 150lm (Blue), and 730lm (White) at 25°C test temperature. Efficacy ratings at test conditions are 31 lm/W (Red), 45 lm/W (Green), 10 lm/W (Blue), and 48 lm/W (White). This component is suitable for applications in architectural lighting, entertainment lighting, and general illumination.
Additional Information
Series: SBR-160RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | Red, Green, Blue, White - Cool (RGBW) |
| Wavelength | 623nm Red, 530nm Green, 458nm Blue |
| Size / Dimension | 36.00mm L x 36.00mm W |
| Type | LED Module |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 2.6V Red, 4.6V Green, 3.8V Blue, 3.8V White |
| Height | 8.72mm |
| Current - Test | 4A Red, 4A Green, 4A Blue, 4A White |
| Viewing Angle | - |
| Lens Type | Flat |
| Current - Max | 4A Red, 4A Green, 4A Blue, 4A White |
| Lumens/Watt @ Current - Test | 31 lm/W Red, 45 lm/W Green, 10 lm/W Blue, 48 lm/W White |
| CCT (K) | 6500K |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 320lm (Typ) Red, 820lm (Typ) Green, 150lm (Typ) Blue, 730lm (Typ) White |
Request a Quote
Clients Also Buy
SBR-160-RGBW-R41-RD100
LED MOD SBR-160 RGBW SQU 6500K
SBR-160-RGBW-R41-RE102
LED MOD SBR-160 RGBW SQU 6500K

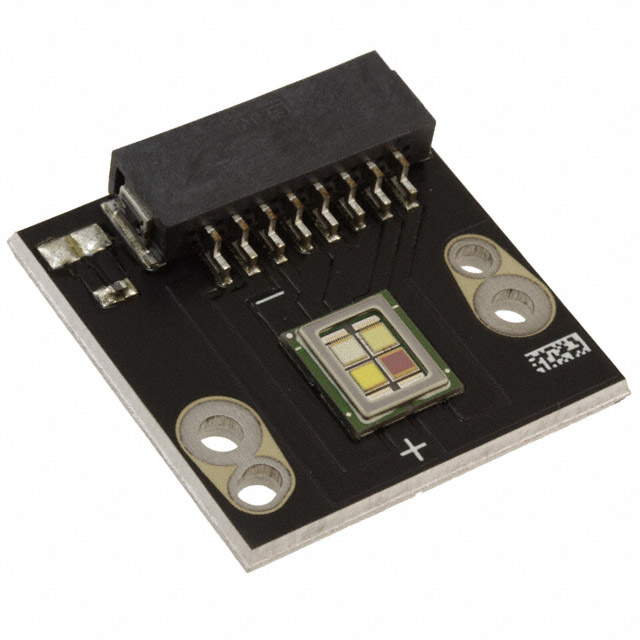

SBR-160-RGBW-R41-RG101
