PT-40-RAX-L55-MPH
LED MOD PT-40 AMBER RECTManufacturer: Luminus Devices Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

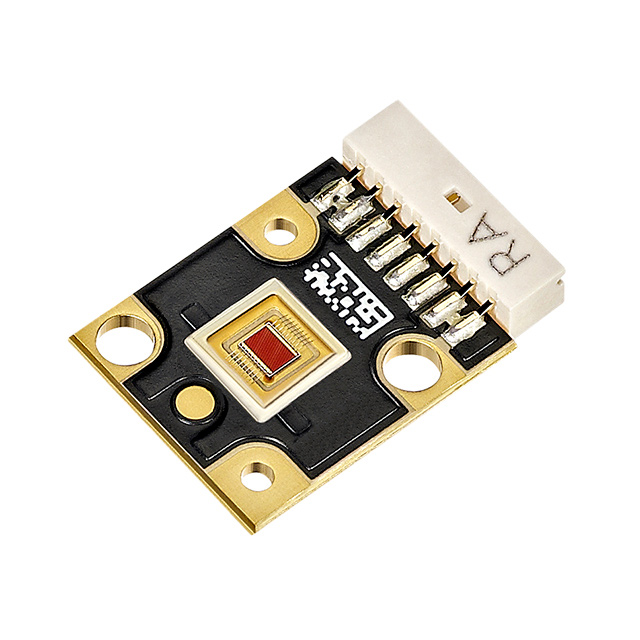

Luminus Devices Inc. PT-40 series LED module, part number PT-40-RAX-L55-MPH. This amber, rectangular COB (Chip-on-Board) module features a 613nm wavelength and a typical forward voltage of 3.1V. Tested at 9.8A and 40°C, it delivers 928 lumens (800lm - 1055lm) with a luminous efficacy of 31 lm/W. The module measures 21.85mm L x 15.00mm W with a height of 3.70mm. Its 1.61mm L x 2.42mm W light-emitting surface is covered by a flat lens. This component is commonly utilized in signage, architectural lighting, and specialty illumination applications. Supplied in a tray.
Additional Information
Series: PT-40RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | Amber |
| Wavelength | 613nm |
| Size / Dimension | 21.85mm L x 15.00mm W |
| Type | LED Module |
| Configuration | Rectangle |
| Voltage - Forward (Vf) (Typ) | 3.1V |
| Height | 3.70mm |
| Current - Test | 9.8A |
| Viewing Angle | - |
| Lens Type | Flat |
| Current - Max | - |
| Lumens/Watt @ Current - Test | 31 lm/W |
| CCT (K) | - |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | 1.61mm L x 2.42mm W |
| Temperature - Test | 40°C |
| Luminous Flux @ Current/Temperature | 928lm (800lm ~ 1055lm) |
