PT-39-R-C21-MPD
LED MOD PT-39 RED RECTManufacturer: Luminus Devices Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

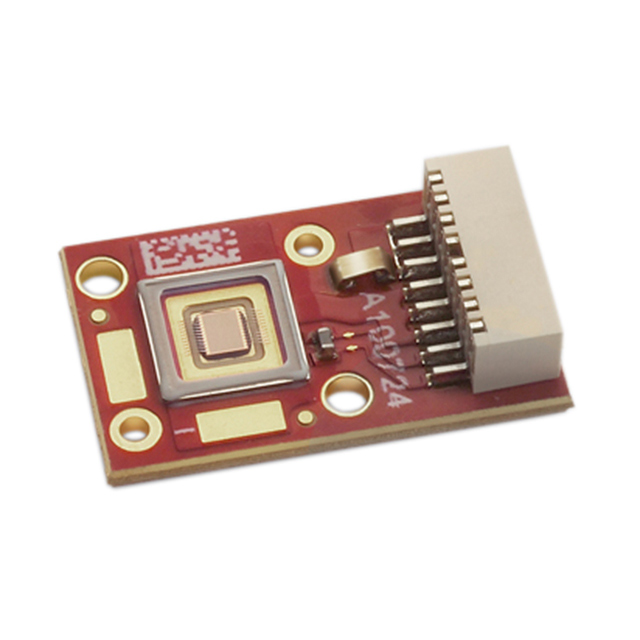

Luminus Devices Inc. PT-39 series LED Module, part number PT-39-R-C21-MPD, offers a compact, rectangular light-emitting surface (LES) measuring 1.87mm L x 2.09mm W. This red LED module operates with a typical forward voltage of 2.6V and a maximum test current of 9.8A, delivering a luminous flux of 665lm at 25°C. The module exhibits a luminous efficacy of 26 lm/W at the test current. Its dimensions are 26.50mm L x 16.00mm W with a height of 6.30mm. The PT-39-R-C21-MPD features an integrated connector for simplified integration. This component is suitable for applications requiring high-intensity red illumination, including automotive lighting and stage lighting. Packaging is supplied in trays.
Additional Information
Series: PT-39RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | Red |
| Wavelength | 623nm |
| Size / Dimension | 26.50mm L x 16.00mm W |
| Type | LED Module |
| Configuration | Rectangle |
| Voltage - Forward (Vf) (Typ) | 2.6V |
| Height | 6.30mm |
| Current - Test | 9.8A |
| Viewing Angle | - |
| Lens Type | Flat |
| Current - Max | 9.8A |
| Lumens/Watt @ Current - Test | 26 lm/W |
| CCT (K) | - |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | 1.87mm L x 2.09mm W |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 665lm (530lm ~ 800lm) |
Request a Quote
Clients Also Buy

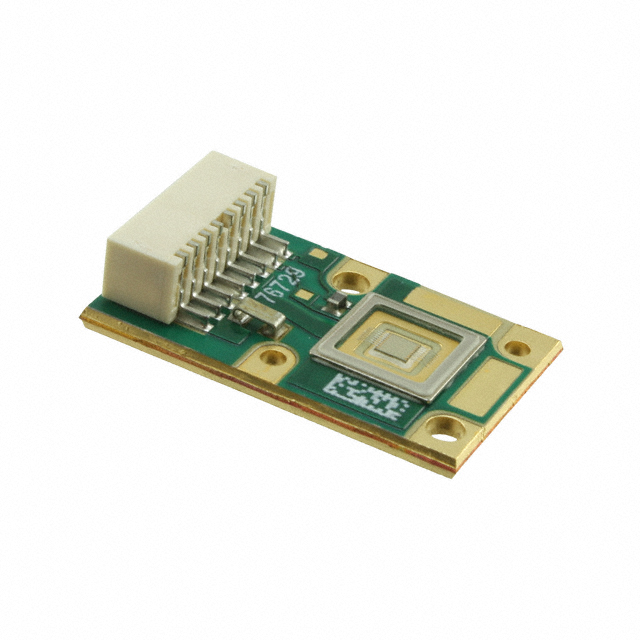

PT-39-G-C21-MPB
LED MOD PT-39 GREEN

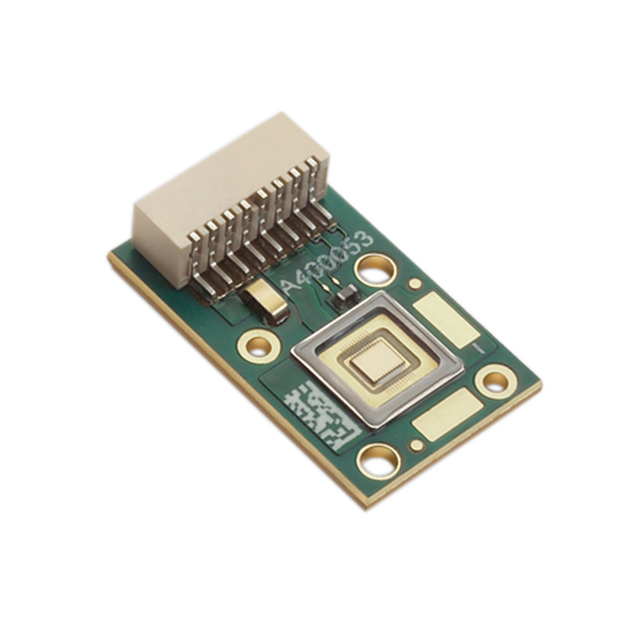

PT-39-G-C21-MPC
