CXM-27-27-90-36-AA00-F1-3
LED COB CXM-27 WARM WHT SQ 2700KManufacturer: Luminus Devices Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

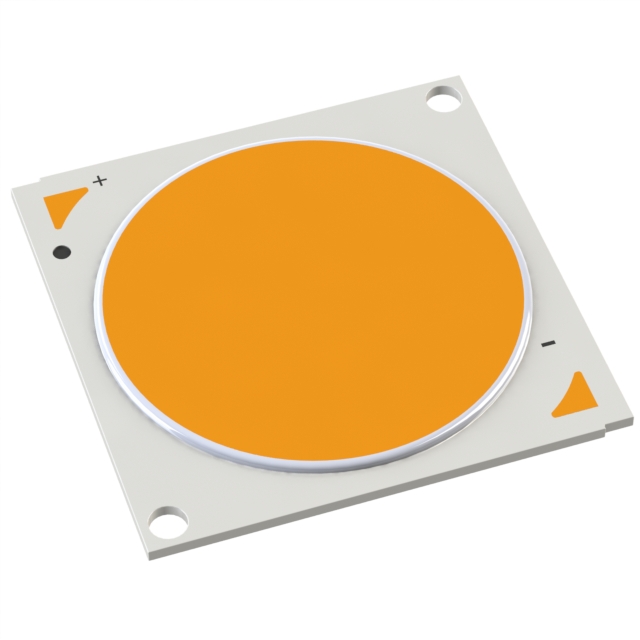

Luminus Devices Inc. CXM-27 series Chip On Board (COB) LED, part number CXM-27-27-90-36-AA00-F1-3. This warm white LED features a 2700K color temperature defined by a 3-Step MacAdam Ellipse and a high Color Rendering Index (CRI) of 90. The square light-emitting surface (LES) has a diameter of 26.50mm. Designed for high-efficacy lighting applications, it achieves 82 lm/W at a test current of 1.8A and produces a luminous flux of 5195 lumens at 85°C. The maximum recommended drive current is 2.7A, with a typical forward voltage of 35V. The module's dimensions are 31.50mm x 31.50mm with a height of 1.37mm and a 120° viewing angle. This component is suitable for use in general lighting, architectural lighting, and entertainment lighting systems. Packaged in trays.
Additional Information
Series: CXM-27RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 31.50mm L x 31.50mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 35V |
| Height | 1.37mm |
| Current - Test | 1.8A |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 2.7A |
| Lumens/Watt @ Current - Test | 82 lm/W |
| CCT (K) | 2700K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | 26.50mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 5195lm (5060lm ~ 5330lm) |
