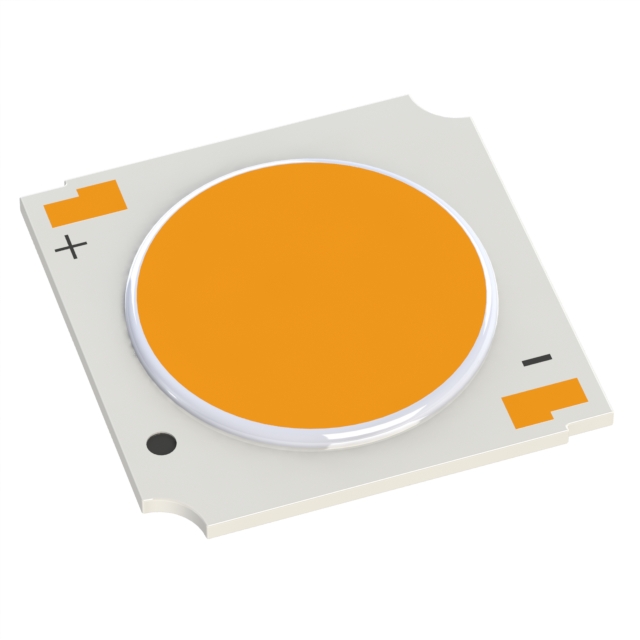

CVM-14-31-95-36-AA00-F2-2
LED COB XNOVA STUDIO WH SQ 3000KManufacturer: Luminus Devices Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
LED Lighting COBs Engines Modules Chip On Board (COB) XNova™ Studio White, Warm Square
Additional Information
Series: XNova™ StudioRoHS Status: ROHS3 CompliantManufacturer Lead Time: 9 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 19.00mm L x 19.00mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 36V |
| Height | 1.37mm |
| Current - Test | 1A |
| Viewing Angle | 120° |
| Current - Max | 1A |
| Lumens/Watt @ Current - Test | - |
| CCT (K) | 3000K 2-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 95 |
| Light Emitting Surface (LES) | 13.50mm Dia |
| Temperature - Test | - |
| Luminous Flux @ Current/Temperature | - |
