CST-90-WDLS-C13-GN150
LED MOD CST-90 COOL WH SQ 5700KManufacturer: Luminus Devices Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Luminus Devices Inc. CST-90 series LED module, part number CST-90-WDLS-C13-GN150, offers a cool white light output with a correlated color temperature of 5700K. This square-configuration LED module features a nominal 3.25V forward voltage and a typical CRI of 70. It is designed for high-power applications, capable of handling a maximum current of 13.5A, with a test current of 3.15A achieving 90 lm/W efficacy. The module delivers a luminous flux of 925 lumens at the specified test conditions. Key physical characteristics include an 8.00mm diameter Light Emitting Surface (LES) and a height of 7.90mm. The module is supplied in trays and includes an integrated connector for ease of integration. This component is widely utilized in general lighting, architectural lighting, and industrial illumination applications.
Additional Information
Series: CST-90RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 42.00mm L x 28.00mm W |
| Type | LED Module |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 3.25V |
| Height | 7.90mm |
| Current - Test | 3.15A |
| Viewing Angle | - |
| Lens Type | Domed |
| Current - Max | 13.5A |
| Lumens/Watt @ Current - Test | 90 lm/W |
| CCT (K) | 5700K |
| CRI (Color Rendering Index) | 70 (Typ) |
| Light Emitting Surface (LES) | 8.00mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 925lm (850lm ~ 1000lm) |
Request a Quote
Clients Also Buy

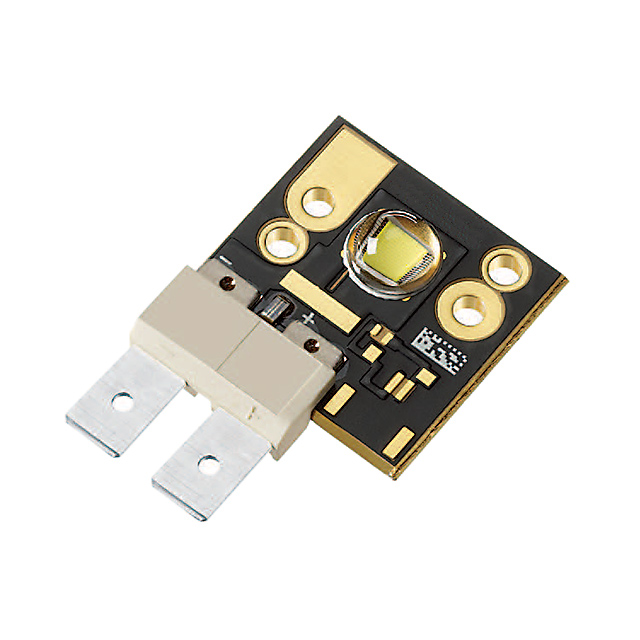

CST-90-W30M-C12-GK700
