CSM-360-WCLS-D22-GX450
LED MOD CSM-360 WHT RECT 4000KManufacturer: Luminus Devices Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Luminus Devices Inc. CSM-360 Series LED Module, part number CSM-360-WCLS-D22-GX450. This white, neutral LED module features a rectangular configuration with a 16.00mm diameter Light Emitting Surface (LES). It operates with a typical forward voltage of 13.14V and a maximum current of 6.3A, with a specified test current of 3.15A. The module offers a typical Color Rendering Index (CRI) of 70 and a neutral white color temperature range of 4000K to 4500K. With a viewing angle of 115°, this module is designed with a domed lens and includes a connector. Its dimensions are 36.00mm in length and 51.00mm in width, with a height of 5.61mm. This component is suitable for applications in general lighting and industrial illumination.
Additional Information
Series: CSM-360RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 36.00mm L x 51.00mm W |
| Type | LED Module |
| Configuration | Rectangle |
| Voltage - Forward (Vf) (Typ) | 13.14V |
| Height | 5.61mm |
| Current - Test | 3.15A |
| Viewing Angle | 115° |
| Lens Type | Domed |
| Current - Max | 6.3A |
| Lumens/Watt @ Current - Test | - |
| CCT (K) | 4000K ~ 4500K |
| CRI (Color Rendering Index) | 70 (Typ) |
| Light Emitting Surface (LES) | 16.00mm Dia |
| Temperature - Test | 40°C |
| Luminous Flux @ Current/Temperature | - |
Request a Quote
Clients Also Buy

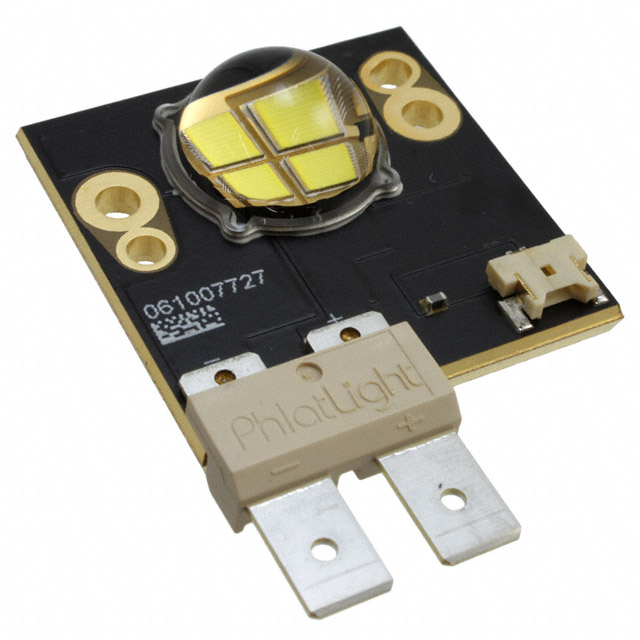

CSM-360-W30M-D22-GT700
LED MOD CSM-360 WHT RECT 3000K

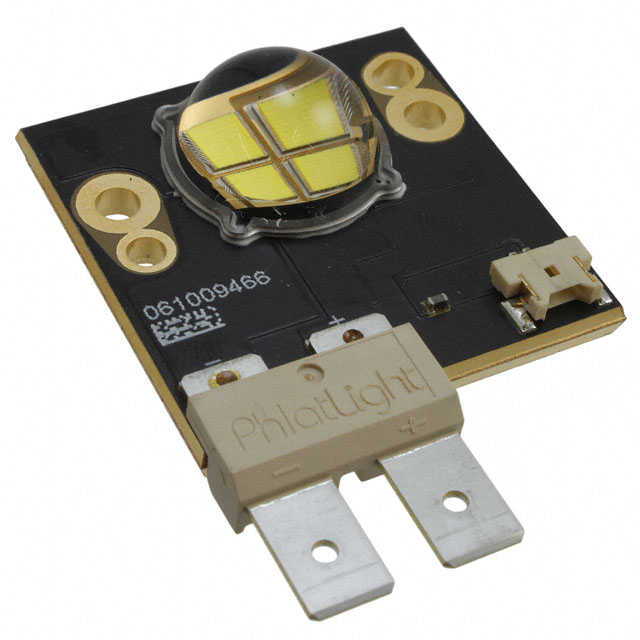

CSM-360-W40S-D22-GV500
