CHM-9-35-90-36-XH24-F3-3
LED COB SENSUS WARM WHT SQ 3500KManufacturer: Luminus Devices Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

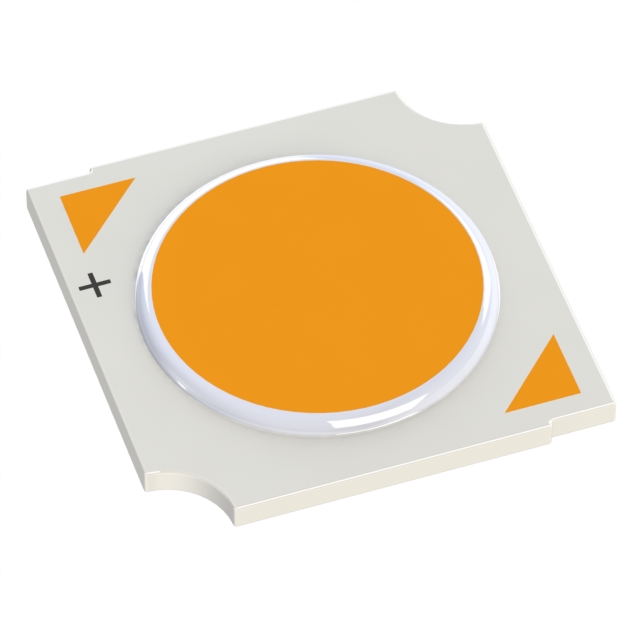

Luminus Devices Inc. CHM-9-35-90-36-XH24-F3-3 is a Sensus™ series Chip On Board (COB) LED module. This warm white LED features a 3500K color temperature with a 3-step MacAdam ellipse for tight color consistency. It offers a high Color Rendering Index (CRI) of 90, ensuring accurate color representation. The square configuration with a 19.00mm x 19.00mm footprint and an 8.90mm diameter Light Emitting Surface (LES) is suitable for various lighting applications. With a typical luminous flux of 2250lm at 720mA test current and 36.5V forward voltage, it achieves 86 lm/W efficiency at 85°C. The module includes a connector and a flat lens, providing a 120° viewing angle. This component is utilized in general lighting, architectural lighting, and display applications. It is supplied in tray packaging.
Additional Information
Series: Sensus™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 19.00mm L x 19.00mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 36.5V |
| Height | 1.37mm |
| Current - Test | 720mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 1.08A |
| Lumens/Watt @ Current - Test | 86 lm/W |
| CCT (K) | 3500K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | 8.90mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 2250lm (Typ) |
