CBT-90-R-C11-HH100
LED MOD CBT-90 RED RECTManufacturer: Luminus Devices Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

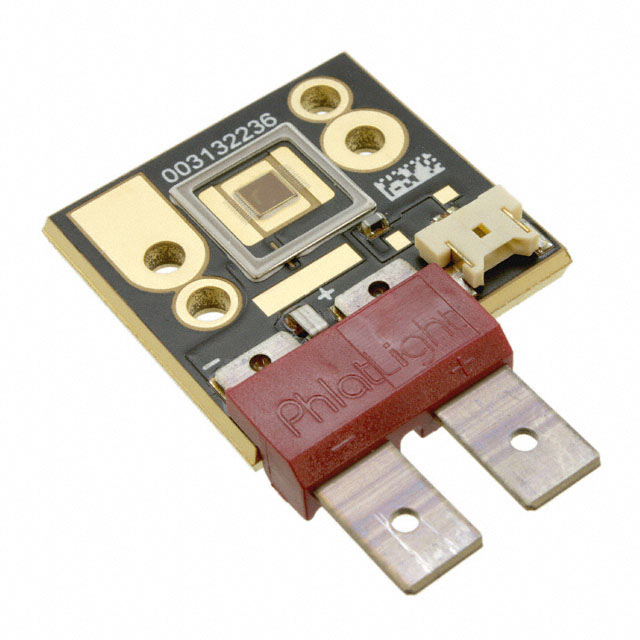

The Luminus Devices Inc. CBT-90 series LED module, part number CBT-90-R-C11-HH100, offers a high-performance red rectangular light-emitting surface (LES). This module is designed for demanding illumination applications, featuring a typical forward voltage of 2.5V and a maximum current rating of 18A, with a test current of 13.5A yielding 900 lumens typical luminous flux. The module achieves 27 lumens per watt at the test conditions. Its construction includes a connector for ease of integration. The compact form factor measures 28.00mm in length and 26.75mm in width, with a height of 4.08mm. The LES is a 3.00mm x 3.00mm square. This component is suitable for use in general lighting and specialty lighting systems.
Additional Information
Series: CBT-90RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | Red |
| Wavelength | - |
| Size / Dimension | 28.00mm L x 26.75mm W |
| Type | LED Module |
| Configuration | Rectangle |
| Voltage - Forward (Vf) (Typ) | 2.5V |
| Height | 4.08mm |
| Current - Test | 13.5A |
| Viewing Angle | - |
| Lens Type | Flat |
| Current - Max | 18A |
| Lumens/Watt @ Current - Test | 27 lm/W |
| CCT (K) | - |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | 3.00mm L x 3.00mm W |
| Temperature - Test | 40°C |
| Luminous Flux @ Current/Temperature | 900lm (Typ) |
Request a Quote
Clients Also Buy

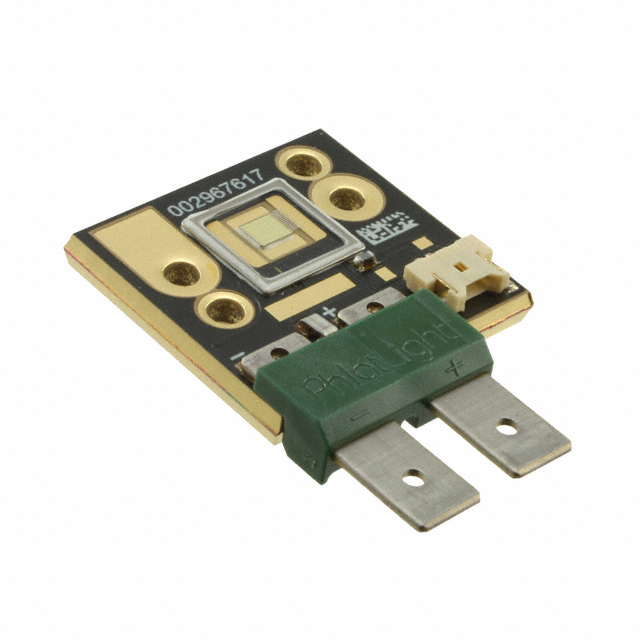

CBT-90-G-C11-JK200
