CBT-40-G-C21-JE200
LED MOD CBT-40 GREEN RECTManufacturer: Luminus Devices Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Luminus Devices Inc. CBT-40 series LED module, part number CBT-40-G-C21-JE200, is a green rectangular LED module designed for high-density lighting applications. This component features a compact footprint with dimensions of 26.50mm L x 16.00mm W and a height of 6.30mm. The light-emitting surface (LES) measures 1.87mm L x 2.09mm W. It operates with a typical forward voltage of 4.5V and can handle a maximum current of 12A, with a test current of 5.9A achieving a luminous flux of 650lm and 24 lm/W efficacy. The emitted light has a wavelength of 528nm (510nm ~ 545nm). This module includes a connector for ease of integration and is supplied in trays. Its robust performance and efficiency make it suitable for use in general lighting, architectural lighting, and stage lighting applications.
Additional Information
Series: CBT-40RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | Green |
| Wavelength | 528nm (510nm ~ 545nm) |
| Size / Dimension | 26.50mm L x 16.00mm W |
| Type | LED Module |
| Configuration | Rectangle |
| Voltage - Forward (Vf) (Typ) | 4.5V |
| Height | 6.30mm |
| Current - Test | 5.9A |
| Viewing Angle | - |
| Lens Type | Flat |
| Current - Max | 12A |
| Lumens/Watt @ Current - Test | 24 lm/W |
| CCT (K) | - |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | 1.87mm L x 2.09mm W |
| Temperature - Test | 40°C |
| Luminous Flux @ Current/Temperature | 650lm (Typ) |
Request a Quote
Clients Also Buy

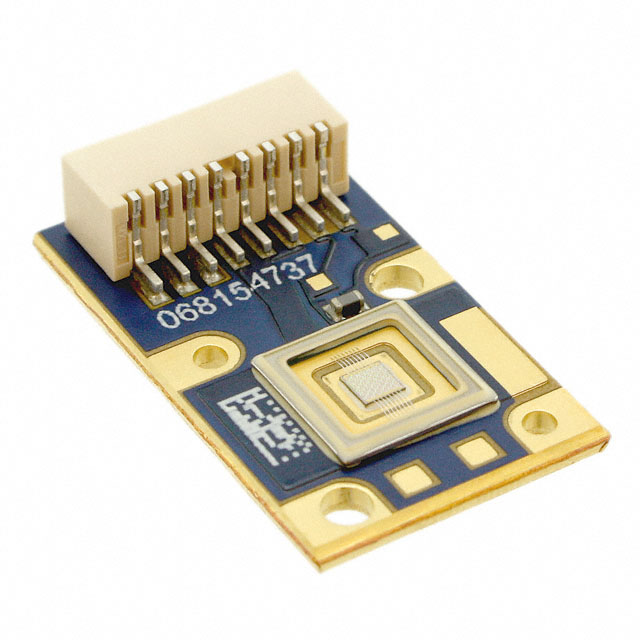

CBT-40-B-C21-KF300
LED MOD CBT-40 BLUE RECT
CBT-40-B-C21-KF301
LED MOD CBT-40 BLUE RECT

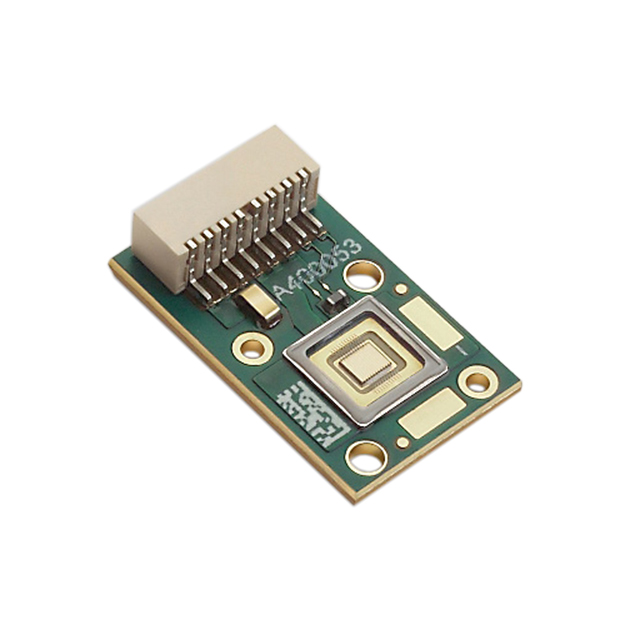

CBT-40-G-C21-JD200
