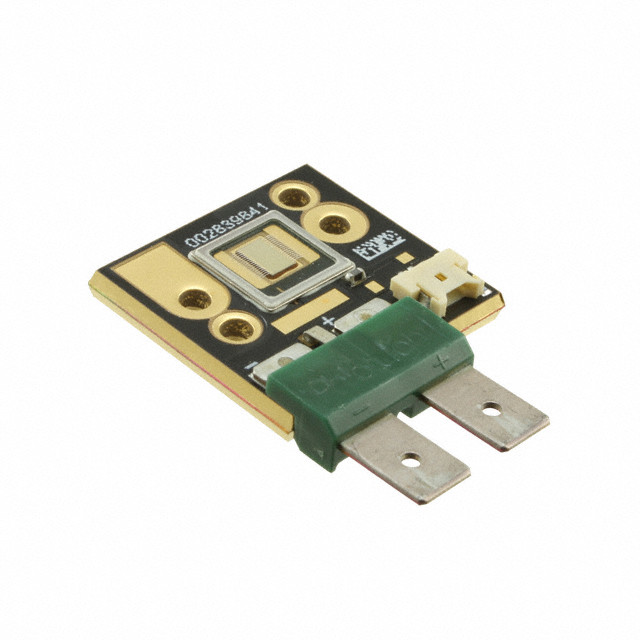

CBT-120-B-C11-KM301
LED MOD CBT-120 BLUE SQUAREManufacturer: Luminus Devices Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Luminus Devices Inc. CBT-120 series LED module, part number CBT-120-B-C11-KM301, features a blue square light-emitting surface. This high-power LED module operates with a typical forward voltage of 4.1V and a maximum current of 36A, with testing performed at 18A. The wavelength range is 455nm to 470nm, centered at 463nm. The module's dimensions are 28.00mm in length and 42.00mm in width, with a height of 5.61mm. The light-emitting surface measures 2.60mm x 4.63mm. Designed with a flat lens and a connector, this component is suitable for demanding illumination applications in industries such as entertainment lighting, architectural lighting, and automotive lighting. The part is supplied in tray packaging.
Additional Information
Series: CBT-120RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | Blue |
| Wavelength | 463nm (455nm ~ 470nm) |
| Size / Dimension | 28.00mm L x 42.00mm W |
| Type | LED Module |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 4.1V |
| Height | 5.61mm |
| Current - Test | 18A |
| Viewing Angle | - |
| Lens Type | Flat |
| Current - Max | 36A |
| Lumens/Watt @ Current - Test | - |
| CCT (K) | - |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | 2.60mm L x 4.63mm W |
| Temperature - Test | - |
| Luminous Flux @ Current/Temperature | - |
Request a Quote
Clients Also Buy

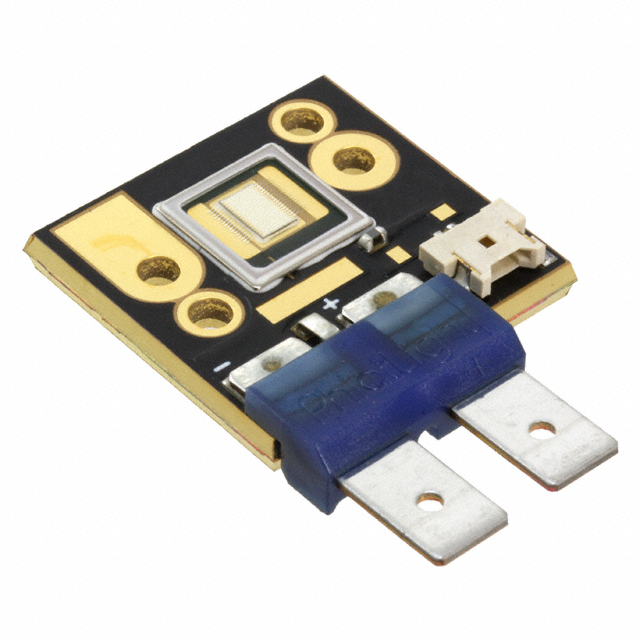

CBT-120-B-C11-KJ300
