MXZ9-PW50-0000
LED LUXEON COOL WHITE 5000K 4014Manufacturer: Lumileds
Categories: LED White Lighting
Quality Control: Learn More

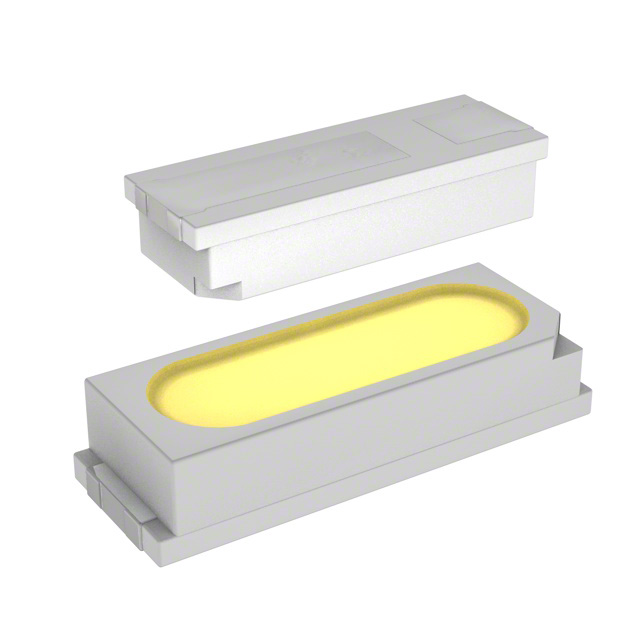

Lumileds LUXEON 4014 Series LED, part number MXZ9-PW50-0000, is a cool white light-emitting diode with a Correlated Color Temperature (CCT) of 5000K. This component is designed for surface mounting within a 1606 (4014 Metric) package, measuring 4.00mm in length and 1.40mm in width with a maximum seated height of 0.80mm. It operates with a typical forward voltage of 2.9V and a test current of 30mA, achieving a typical luminous flux of 11 lumens and a luminous efficacy of 126 lm/W at this current. The LED features a high Color Rendering Index (CRI) of 90 (typical). It is supplied in Tape & Reel packaging. This component is suitable for general lighting applications and is often utilized in automotive and industrial illumination systems.
Additional Information
Series: LUXEON 4014RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1606 (4014 Metric) |
| Color | White, Cool |
| Size / Dimension | 0.157"" L x 0.055"" W (4.00mm x 1.40mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.9V |
| Current - Test | 30mA |
| Viewing Angle | - |
| Current - Max | 90mA |
| Supplier Device Package | 4014 |
| Lumens/Watt @ Current - Test | 126 lm/W |
| Height - Seated (Max) | 0.031"" (0.80mm) |
| CCT (K) | 5000K |
| CRI (Color Rendering Index) | 90 (Typ) |
| Flux @ 25°C, Current - Test | 11lm (Typ) |
| Flux @ 85°C, Current - Test | - |
