MXM7-PW65-0000
LED LUXEON COOL WHITE 6500K 2SMDManufacturer: Lumileds
Categories: LED White Lighting
Quality Control: Learn More
Lumileds LUXEON 3535 series cool white LED, part number MXM7-PW65-0000. This surface mount component features a color temperature of 6500K and a typical forward voltage of 3.1V at 100mA, delivering 39 lumens with a luminous efficacy of 126 lm/W. The LED has a wide 115° viewing angle and a maximum forward current of 150mA. Encased in a 1414 (3535 metric) package, measuring 3.50mm x 3.50mm with a maximum seated height of 1.35mm, it is supplied on tape and reel. This component is suitable for general illumination and signage applications where a cool white light source is required.
Additional Information
Series: LUXEON 3535RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1414 (3535 Metric) |
| Color | White, Cool |
| Size / Dimension | 0.138"" L x 0.138"" W (3.50mm x 3.50mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.1V |
| Current - Test | 100mA |
| Viewing Angle | 115° |
| Current - Max | 150mA |
| Supplier Device Package | 3535 |
| Lumens/Watt @ Current - Test | 126 lm/W |
| Height - Seated (Max) | 0.053"" (1.35mm) |
| CCT (K) | 6500K |
| CRI (Color Rendering Index) | 70 |
| Flux @ 25°C, Current - Test | 39lm (Typ) |
| Flux @ 85°C, Current - Test | - |
Request a Quote
Clients Also Buy

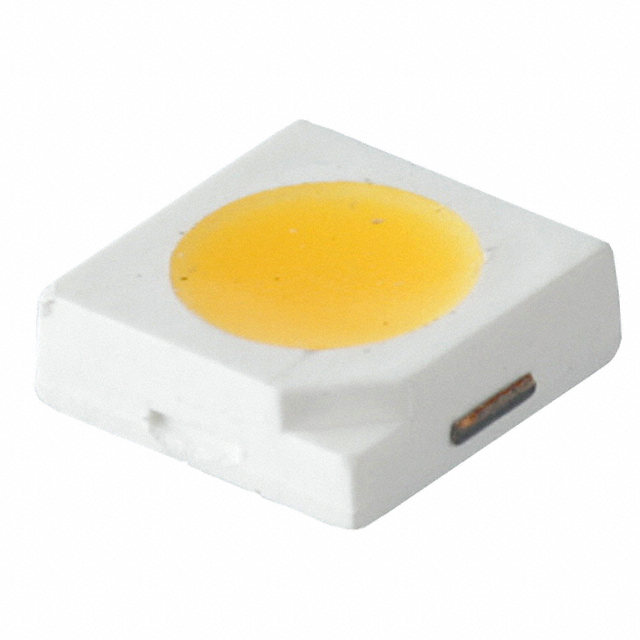

MXM8-PW27-0000
